(700) - LOADER BACKHOE (4/99-12/00)
/

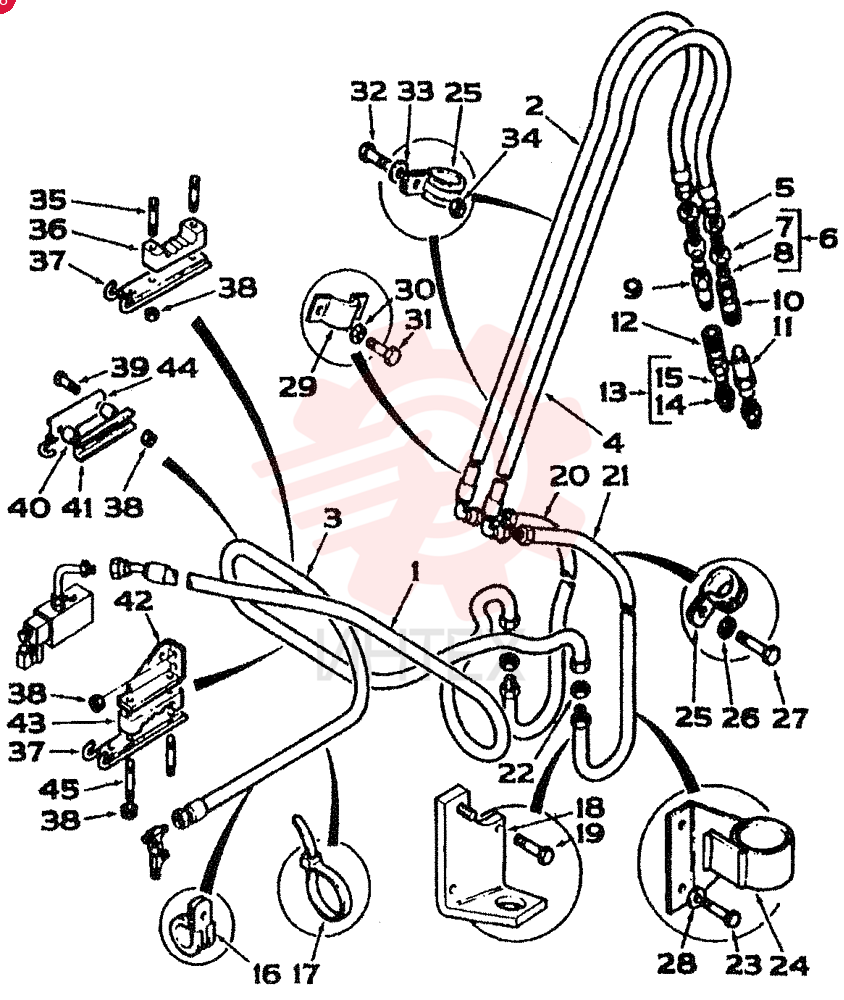

HOSE ASSY.

HOSE ASSY.

HOSE ASSY.

1 3517386M91

  • 3517386M91 - HOSE ASSY.
  • HOSE ASSY ("YELLOW")

2 3516159M93

  • 3516159M93 - HOSE ASSY.
  • HOSE ASSY

3 3517387M91

  • 3517387M91 - HOSE ASSY.
  • HOSE ASSY ("ORANGE")

4 3516160M92

  • 3516160M92 - HOSE ASSY.
  • HOSE ASSY

5 355575X1

  • 355575X1 - LOCK NUT
  • NUT (1
  • 1/16' UNC)

6 3516794M91

  • 3516794M91 - COUPLING
  • BREAK AWAY
  • CONNECTOR (CONSISTS OF REF 7
  • 8)

7 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

8 835025M1

  • 835025M1 - O-RING

9 3516795M91

  • 3516795M91 - COUPLING
  • FEMALE COUPLER

10 3516798M91

  • 3516798M91 - COUPLING
  • MALE COUPLER

11 3516797M91

  • 3516797M91 - COUPLING
  • FEMALE COUPLER

12 3516796M91

  • 3516796M91 - COUPLING
  • MALE COUPLER

13 835057M91

  • 835057M91 - UNION
  • CONNECTOR (CONSISTS OF REF 14
  • 15)

14 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

15 835025M1

  • 835025M1 - O-RING
  • O-RLNG

16 3516392M1

  • 3516392M1 - CLIP
  • CLAMP

17 724497M1

  • 724497M1 - CABLE
  • STRAP

18 3517380M91

  • 3517380M91 - SUPPORT
  • BRACKET

19 3517379M1

  • 3517379M1 - SUPPORT
  • BRACKET

20 339123X1

  • 339123X1 - SCREW
  • BOLT (M8 X 20MM)

21 3517384M91

  • 3517384M91 - HOSE ASSY.
  • HOSE ASSY (YELLOW)

22 3517385M91

  • 3517385M91 - HOSE ASSY.
  • HOSE ASSY (ORANGE)

23 355575X1

  • 355575X1 - LOCK NUT
  • LOCKNUT

24 339123X1

  • 339123X1 - SCREW
  • BOLT (M6 X 20MM)

25 3511429M93

  • 3511429M93 - GUIDE

26 3516393M1

  • 3516393M1 - CLIP
  • CLAMP

27 390972X1

  • 390972X1 - WASHER

28 339168X1

  • 339168X1 - BOLT
  • (M8 X 50MM)

29 385361X1

  • 385361X1 - WASHER

30 3517292M1

  • 3517292M1 - CLAMP

31 390972X1

  • 390972X1 - WASHER

32 339124X1

  • 339124X1 - SCREW
  • BOLT (M8 X 16MM)

33 3009493X1

  • 3009493X1 - SCREW
  • BOLT (M10X30MM)

34 390734X1

  • 390734X1 - WASHER

35 1440329X1

  • 1440329X1 - NUT
  • LOCKNUT (M10)

36 3516075M1

  • 3516075M1 - STUD
  • (M8 X 65MM)

37 3518477M1

  • 3518477M1 - STUD
  • (M8 X 70MM)

38 3516575M2

  • 3516575M2 - CLAMP

39 3517047M91

  • 3517047M91 - ELEC SUPPORT PLATE
  • PLATE
  • CLAMPING

40 394367X1

  • 394367X1 - LOCK NUT
  • NUT (M8)

41 339168X1

  • 339168X1 - BOLT
  • (M8 X 50MM)

42 3522057M2

  • 3522057M2 - SPACER

43 3522058M3

  • 3522058M3 - PLATE
  • CLAMPING

44 3522038M93

  • 3522038M93 - SUPPORT
  • BRACKET
  • R.H

45 3517375M91

  • 3517375M91 - SUPPORT
  • BRACKET
  • L.H

46 3516575M2

  • 3516575M2 - CLAMP

47 3517325M91

  • 3517325M91 - SUPPORT
  • PLATE
  • CLAMPING

48 3516075M1

  • 3516075M1 - STUD
  • (M8 X 65MM)

49 3516689M2

  • 3516689M2 - STUD
  • (M8 X 78MM)
