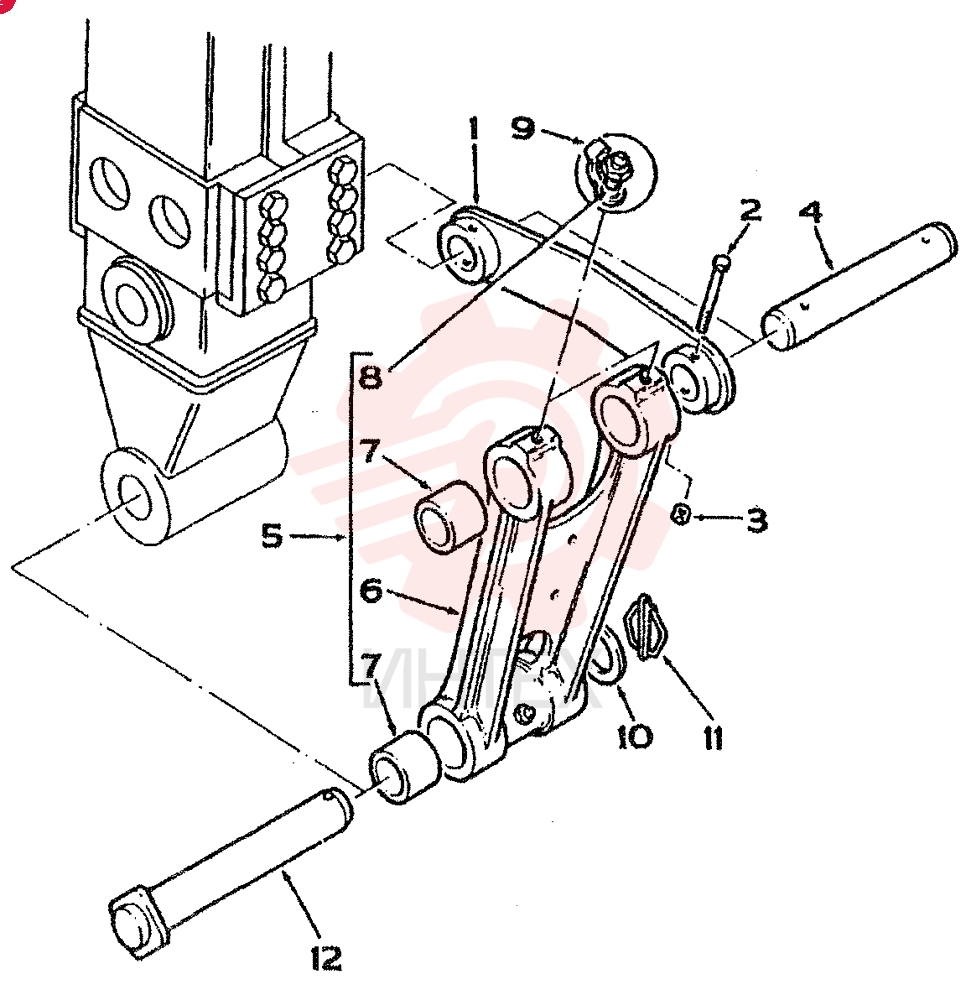

(700) - LOADER BACKHOE (4/99-12/00)
/
LINK

LINK

LINK

1 3500023M91

  • 3500023M91 - LINK

2 1441106X1

  • 1441106X1 - BOLT
  • (M10X 100 MM)

3 1440329X1

  • 1440329X1 - NUT
  • LOCKNUT (M10)

4 3522696M1

  • 3522696M1 - PIN
  • (F45 X 307 MM)

5 3522442M91

  • 3522442M91 - LINK
  • (CONSISTS OF REF 6 TO 8)

6 NSS

  • NSS - NOT SOLD SEPARAT
  • LINK

7 3500009M3

  • 3500009M3 - BUSHING
  • BUSH

8 339608X1

  • 339608X1 - LUBE NIPPLE
  • SREASE NIPPLE

9 3516180M1

  • 3516180M1 - CAP

10 3501790M1

  • 3501790M1 - WASHER

11 3516S22M91

  • 3516S22M91 - PIN RING ASSY

12 3516519M92

  • 3516519M92 - LARGE PIN
  • PIN (F45 X 298 MM)
