(700) - LOADER BACKHOE (4/99-12/00)
/

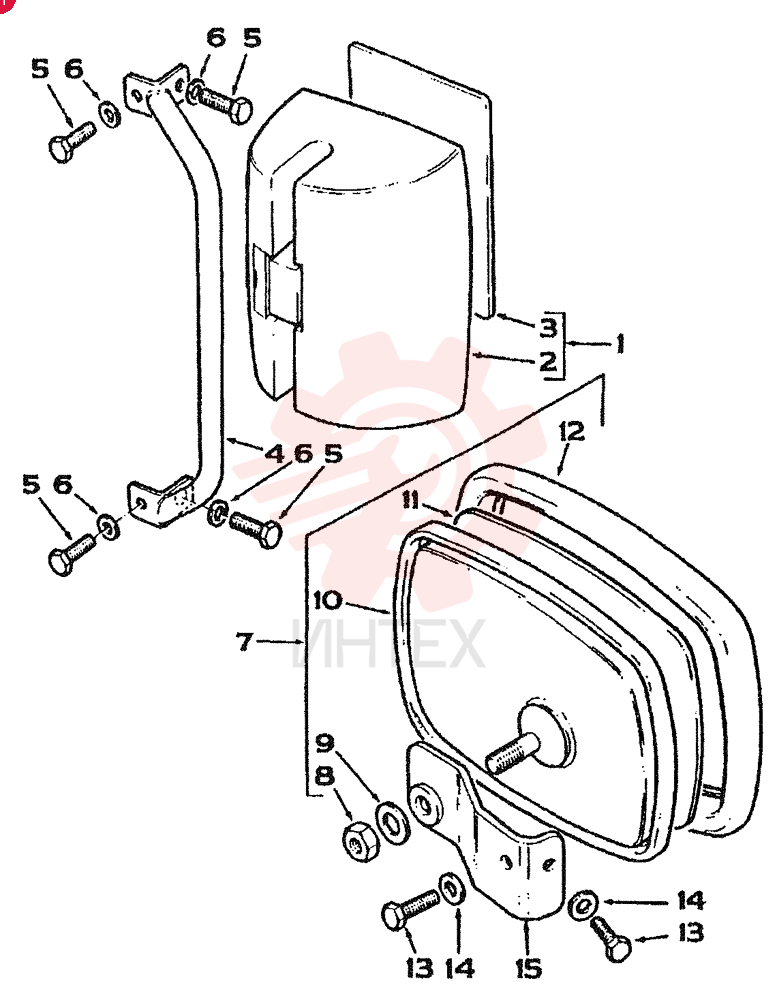

MIRROR

MIRROR

MIRROR

1 3512336M91

  • 3512336M91 - MIRROR
  • CAB
  • CONSISTS OF REF 2
  • 3

2 NSS

  • NSS - NOT SOLD SEPARAT
  • BODY

3 3477528M1

  • 3477528M1 - GLASS
  • CAB
  • GLASS

4 3516569M91

  • 3516569M91 - ARM ASSY.
  • ARM
  • CAB

5 3512463M1

  • 3512463M1 - SCREW
  • SETSCREW
  • M6X16MM

6 390971X1

  • 390971X1 - WASHER
  • M6X12X1MM

7 1473839M91

  • 1473839M91 - MIRROR
  • ROPS
  • CONSISTS OF REF 8-12

8 339169X1

  • 339169X1 - NUT

9 391039X1

  • 391039X1 - WASHER

10 NSS

  • NSS - NOT SOLD SEPARAT
  • BODY

11 3523749M1

  • 3523749M1 - GLASS

12 3523750M1

  • 3523750M1 - GASKET
  • SURROUND

13 3512463M1

  • 3512463M1 - SCREW
  • SETSCREW
  • M6X16MM

14 3512395M1

  • 3512395M1 - WASHER

15 3517028M91

  • 3517028M91 - SUPPORT
  • BRACKET
