(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

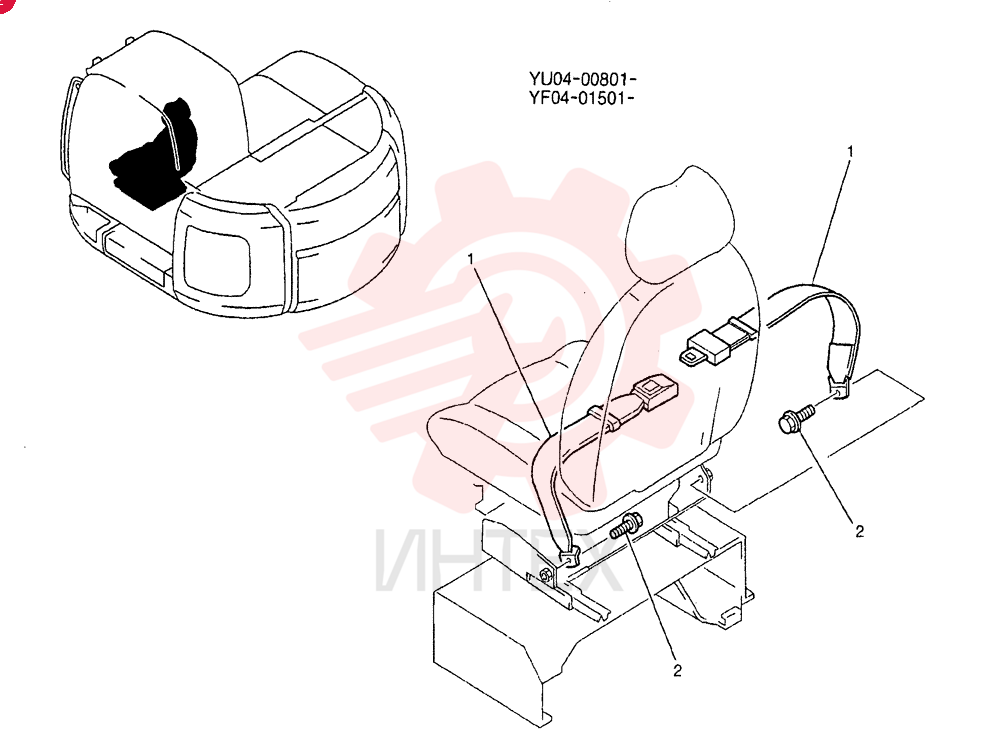

SAFETY BELT YT25M00022F1

SAFETY BELT YT25M00022F1

SAFETY BELT YT25M00022F1

1 YT25M00022F1

  • YT25M00022F1 - SAFETY BELT

2 YT25M00030F1

  • YT25M00030F1 - SAFETY BELT

3 ZM22C10025

  • ZM22C10025 - BOLT
