(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

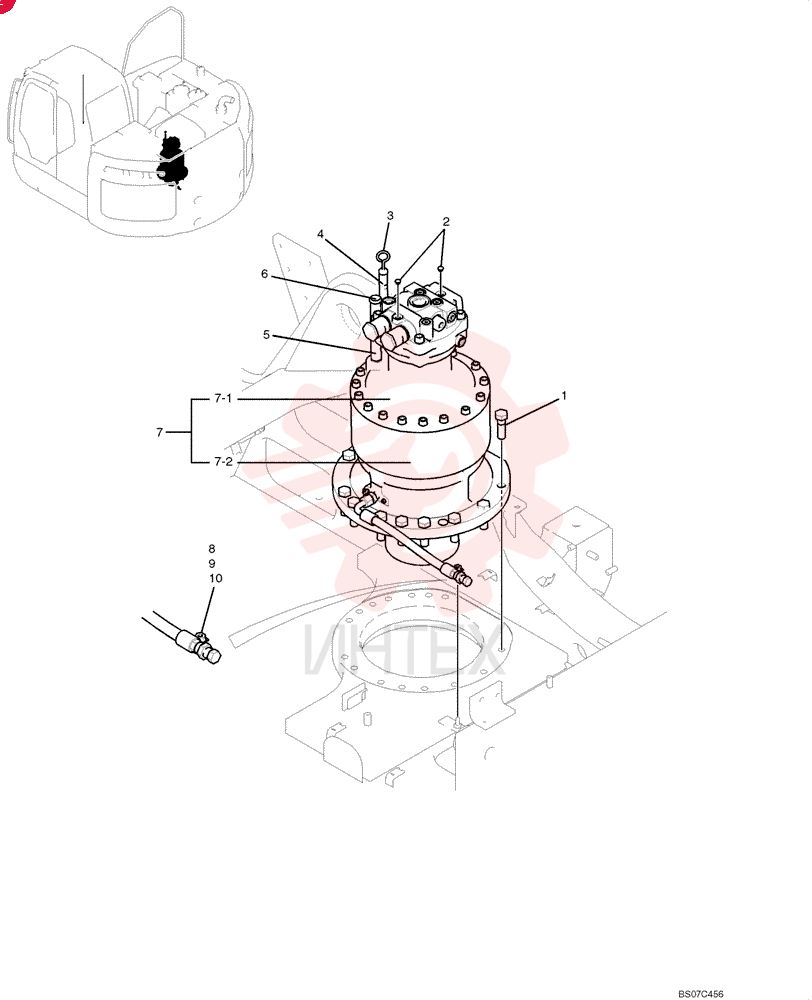

SCREW ZS13C20065

SCREW ZS13C20065

SCREW ZS13C20065

1 ZS13C20065

  • ZS13C20065 - SCREW

2 PV02B01073D3

  • PV02B01073D3 - CAP

3 YN32W01101D1

  • YN32W01101D1 - LEVEL GAUGE

4 YN32W01114D2

  • YN32W01114D2 - TUBE

5 LQ32W01052D1

  • LQ32W01052D1 - TUBE

6 LS32W01015P1

  • LS32W01015P1 - CAP

7 YF15V00003F1

  • YF15V00003F1 - MOTOR

8 YF15V00004F1

  • YF15V00004F1 - HYDRAULIC MOTOR

9 YF32W00001F1

  • YF32W00001F1 - REDUCER

10 ZN18C10008

  • ZN18C10008 - NUT

11 ZW16X10000

  • ZW16X10000 - WASHER

12 ZC46X22011

  • ZC46X22011 - CLIP
