(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

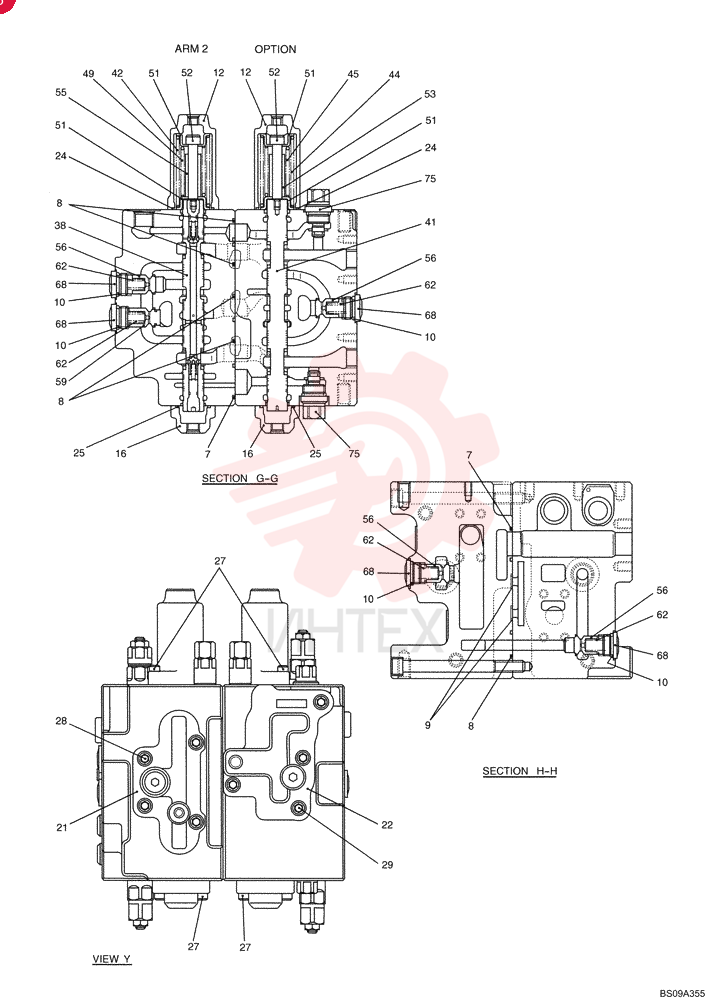

O-RING ZD12P03800

O-RING ZD12P03800

O-RING ZD12P03800

1 ZD12P03800

  • ZD12P03800 - O-RING

2 ZD12G03000

  • ZD12G03000 - O-RING
  • 29.40mm ID x 35.60mm OD x 3.10mm

3 ZD12P01500

  • ZD12P01500 - O-RING

4 ZD12P02400

  • ZD12P02400 - O-RING

5 YN30V00101S201

  • YN30V00101S201 - GUARD

6 YN30V00001S205

  • YN30V00001S205 - COVER

7 YN30V00079S212

  • YN30V00079S212 - PLATE

8 YN30V00101S213

  • YN30V00101S213 - PLATE

9 ZD12G05000

  • ZD12G05000 - O-RING
  • 49.40mm ID x 55.60mm OD x 3.10mm

10 ZD12G04000

  • ZD12G04000 - O-RING
  • 39.40mm ID x 45.60mm OD x 3.10mm

11 ZS23C08025

  • ZS23C08025 - SCREW
  • Hex Socket Head
  • M8 x 25mm

12 ZS23C12025

  • ZS23C12025 - CAPSCREW
  • Hex Socket Head
  • M12 x 52mm

13 ZS23C12035

  • ZS23C12035 - SCREW
  • Hex Socket Head
  • M12 x 35mm

14 YN30V00101S308

  • YN30V00101S308 - SPOOL

15 YN30V00101S311

  • YN30V00101S311 - SPOOL

16 YN30V00079S321

  • YN30V00079S321 - SPRING

17 2436U1165S371

  • 2436U1165S371 - SPRING

18 2436U1165S372

  • 2436U1165S372 - SPRING

19 YN30V00101S328

  • YN30V00101S328 - SPRING

20 2436U1443S332

  • 2436U1443S332 - SPRING SEAT

21 2436U1165S335

  • 2436U1165S335 - STOP

22 YN30V00101S340

  • YN30V00101S340 - CLIP

23 YN30V00101S341

  • YN30V00101S341 - HYDRAULIC VALVE

24 2436U1231S513

  • 2436U1231S513 - POPPET

25 2436U1165S521

  • 2436U1165S521 - SPRING

26 YN30V00001S551

  • YN30V00001S551 - PLUG

27 YN30V01062P1

  • YN30V01062P1 - PLUG

28 YN30V00101R100

  • YN30V00101R100 - REPAIR KIT

29 YN30V00116R110

  • YN30V00116R110 - REPAIR KIT

30 YN30V00101R120

  • YN30V00101R120 - REPAIR KIT

31 YN30V00116R130

  • YN30V00116R130 - REPAIR KIT

32 YN30V00101R140

  • YN30V00101R140 - REPAIR KIT

33 YN30V00101R150

  • YN30V00101R150 - REPAIR KIT

34 YN30V00101R170

  • YN30V00101R170 - REPAIR KIT

35 YN30V00116R170

  • YN30V00116R170 - REPAIR KIT

36 YN30V00101R190

  • YN30V00101R190 - REPAIR KIT

37 YN30V00101R200

  • YN30V00101R200 - REPAIR KIT

38 YN30V00101R210

  • YN30V00101R210 - REPAIR KIT

39 YN30V00101R220

  • YN30V00101R220 - SPOOL
