(SK40SR) - COMPACT EXCAVATOR ASN PH04-02801 (NA) (1/90-12/04)
/

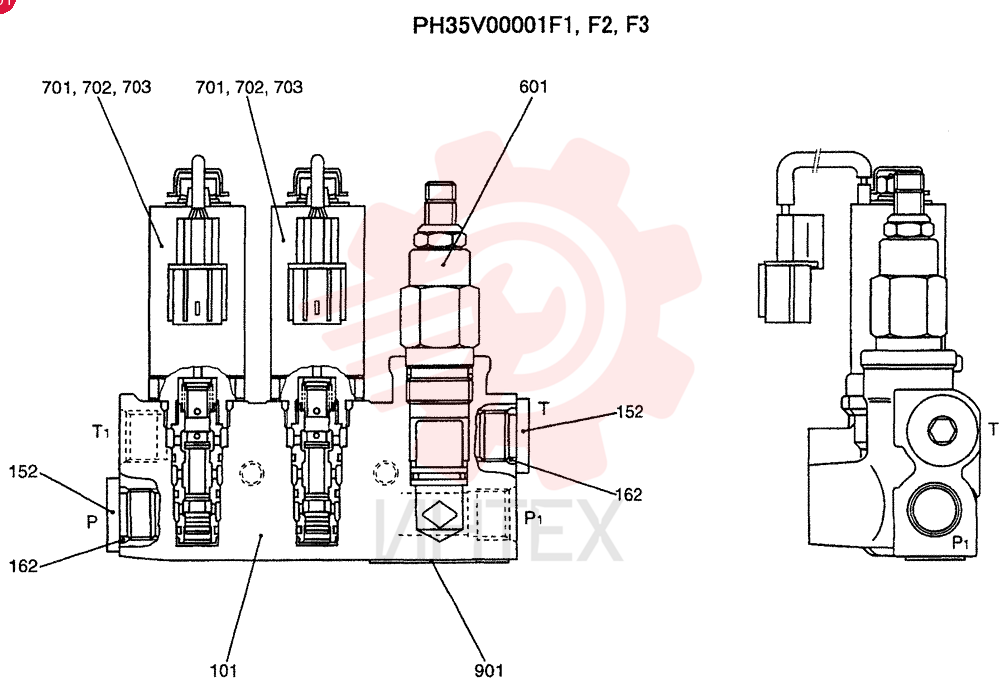

SOLENOID VALVE PH35V00001F1 (1)

SOLENOID VALVE PH35V00001F1 (1)

SOLENOID VALVE PH35V00001F1 (1)

1 PH35V00001F1

  • PH35V00001F1 - SOLENOID VALVE

2 PH35V00001S101

  • PH35V00001S101 - CASE

3 PH35V00001F2

  • PH35V00001F2 - VALVE

4 PH35V00001F3

  • PH35V00001F3 - VALVE ASSY
  • SOLENOID

5 YN30V00001S156

  • YN30V00001S156 - PLUG

6 ZD12P01400

  • ZD12P01400 - O-RING

7 PH22V00001F1

  • PH22V00001F1 - VALVE PRESSURE RELIE

8 PH35V00002F1

  • PH35V00002F1 - SOLENOID VALVE

9 PH35V00002F2

  • PH35V00002F2 - SOLENOID VALVE

10 PH35V00002F3

  • PH35V00002F3 - HYDRAULIC VALVE

11 PH35V00001S901

  • PH35V00001S901 - LABEL
