(SK40SR) - COMPACT EXCAVATOR ASN PH04-02801 (NA) (1/90-12/04)
/

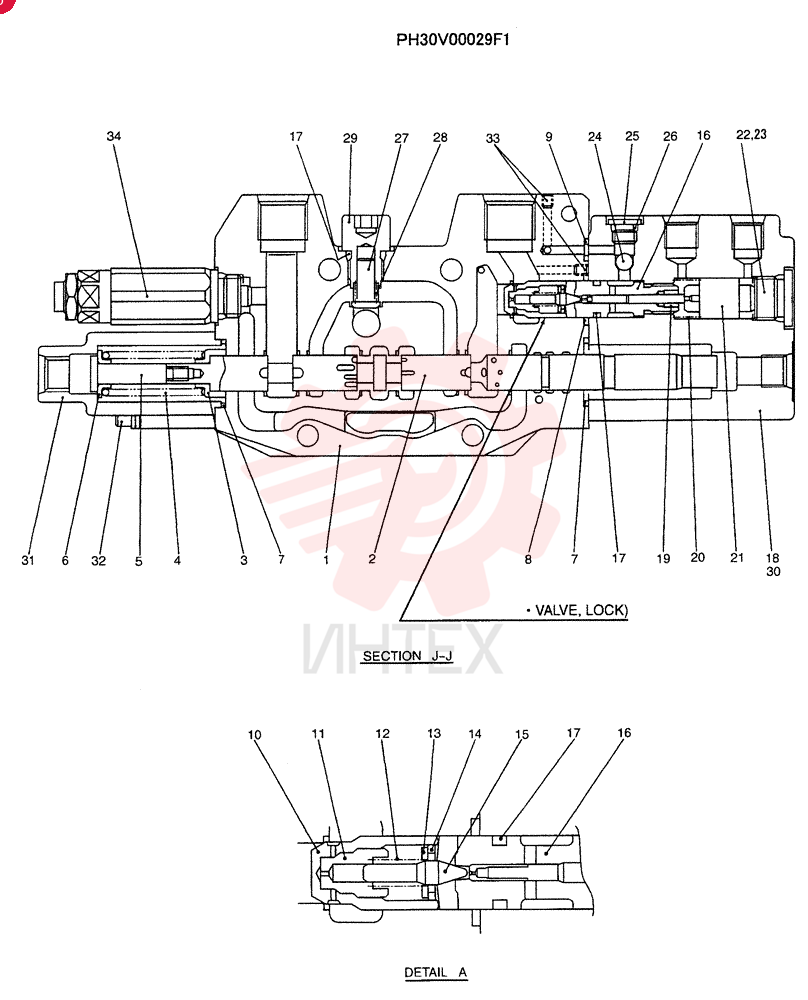

VALVE PH30V00029F1 (2)

VALVE PH30V00029F1 (2)

VALVE PH30V00029F1 (2)

1 PH30V00029F1

  • PH30V00029F1 - VALVE

2 NSS

  • NSS - NOT SOLD SEPARAT

3 NSS

  • NSS - NOT SOLD SEPARAT

4 NSS

  • NSS - NOT SOLD SEPARAT

5 NSS

  • NSS - NOT SOLD SEPARAT

6 NSS

  • NSS - NOT SOLD SEPARAT

7 NSS

  • NSS - NOT SOLD SEPARAT

8 PH30V00009S007

  • PH30V00009S007 - O-RING

9 ZD12P01800

  • ZD12P01800 - O-RING

10 ZD12P00600

  • ZD12P00600 - O-RING

11 NSS

  • NSS - NOT SOLD SEPARAT

12 NSS

  • NSS - NOT SOLD SEPARAT

13 NSS

  • NSS - NOT SOLD SEPARAT

14 NSS

  • NSS - NOT SOLD SEPARAT

15 NSS

  • NSS - NOT SOLD SEPARAT

16 NSS

  • NSS - NOT SOLD SEPARAT

17 NSS

  • NSS - NOT SOLD SEPARAT

18 ZD12P01100

  • ZD12P01100 - O-RING

19 NSS

  • NSS - NOT SOLD SEPARAT

20 PH30V00029S019

  • PH30V00029S019 - PISTON

21 YT30V00001S035

  • YT30V00001S035 - SPRING

22 YT30V00001S036

  • YT30V00001S036 - PISTON

23 YT30V00001S020

  • YT30V00001S020 - PLUG

24 ZD12P01500

  • ZD12P01500 - O-RING

25 2483U156S44

  • 2483U156S44 - BALL

26 PH30V00029S025

  • PH30V00029S025 - PLUG

27 ZD12P00800

  • ZD12P00800 - O-RING
  • 1.9mm Thk x 7.8mm ID
  • 90 Duro

28 PH30V00003S006

  • PH30V00003S006 - POPPET

29 PH30V00003S007

  • PH30V00003S007 - SPRING

30 PH30V00009S015

  • PH30V00009S015 - PLUG

31 YT30V00018S018

  • YT30V00018S018 - CAPSCREW

32 PH30V00009S008

  • PH30V00009S008 - COVER

33 PH30V00009S019

  • PH30V00009S019 - CAPSCREW

34 2436U1317S22

  • 2436U1317S22 - PLUG

35 PM22V00005F4

  • PM22V00005F4 - VALVE PRESSURE RELIE

36 PH30V00029R100

  • PH30V00029R100 - REPAIR KIT
