(SK40SR) - COMPACT EXCAVATOR ASN PH04-02801 (NA) (1/90-12/04)
/

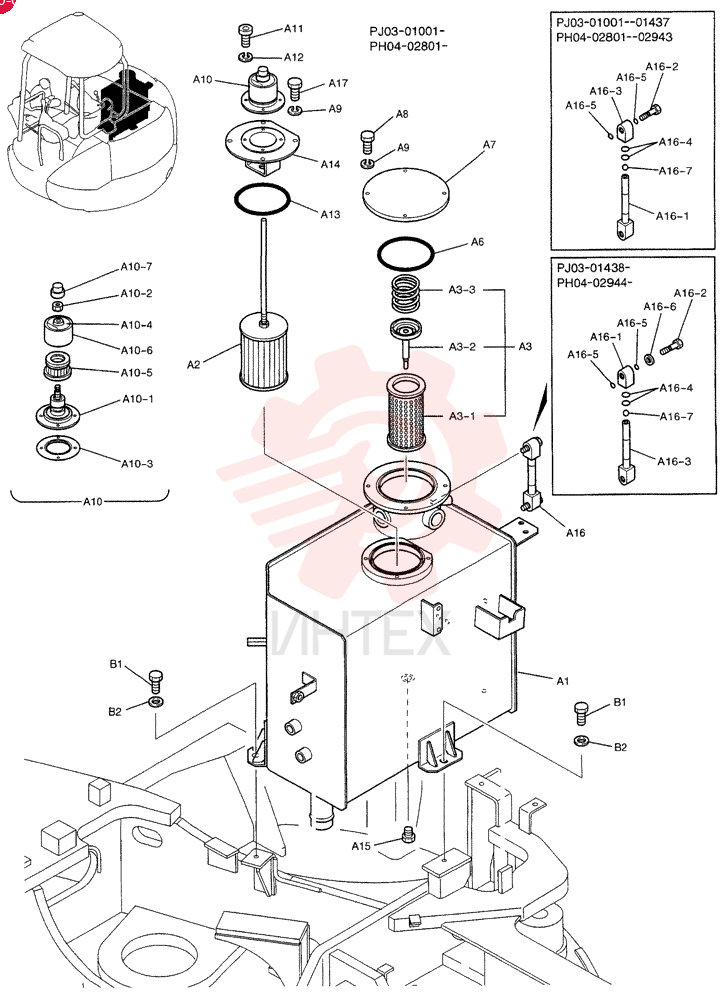

TANK ASSY, HYD TANK ASSY,HYD PH33H00011F1 (2)

TANK ASSY, HYD TANK ASSY,HYD PH33H00011F1 (2)

TANK ASSY, HYD TANK ASSY,HYD PH33H00011F1 (2)

1 PH33H00011F1

  • PH33H00011F1 - TANK ASSY
  • HYD TANK ASSY
  • HYD

2 PH33H00010P1

  • PH33H00010P1 - TANK

3 PM50V00017F3

  • PM50V00017F3 - FILTER STRAINER

4 PH50V00004F1

  • PH50V00004F1 - FILTER ASSY

5 PH50V00005F1

  • PH50V00005F1 - HYDRAULIC OIL FILTER

6 PH21V00002F1

  • PH21V00002F1 - VALVE

7 PH50V01001P1

  • PH50V01001P1 - SPRING

8 ZD11G12500

  • ZD11G12500 - O-RING
  • 3.1mm Thk x 124.4mm ID
  • 70 Duro

9 PH33H01026P1

  • PH33H01026P1 - COVER

10 ZS18C08020

  • ZS18C08020 - SCREW
  • Hex
  • M8 x 20mm

11 ZW26X08000

  • ZW26X08000 - LOCK WASHER

12 YN57V00002F4

  • YN57V00002F4 - BREATHER ASSY.

13 2446U260S1

  • 2446U260S1 - BODY

14 2446U260S5

  • 2446U260S5 - NUT

15 2446U260S8

  • 2446U260S8 - PACKING

16 YN57V00002S007

  • YN57V00002S007 - IDENTITY PLATE

17 YN57V00002S010

  • YN57V00002S010 - ELEMENT

18 YN57V00002S011

  • YN57V00002S011 - COVER

19 YN57V00002S012

  • YN57V00002S012 - CAP

20 ZS28C06016

  • ZS28C06016 - SCREW
  • Hex Socket Head
  • M6 x 16mm

21 ZW26K06000

  • ZW26K06000 - LOCK WASHER

22 ZD11G11500

  • ZD11G11500 - O-RING
  • 114.40mm ID x 120.60mm OD x 3.10mm

23 PH33H01025P1

  • PH33H01025P1 - COVER

24 ZE72X06000

  • ZE72X06000 - PLUG

25 2489R293F2

  • 2489R293F2 - LEVEL GAUGE

26 2489R293F2

  • 2489R293F2 - LEVEL GAUGE

27 2489R173S1

  • 2489R173S1 - GAUGE

28 2489R174S3

  • 2489R174S3 - BOLT

29 2489R174S2

  • 2489R174S2 - BLOCK

30 ZD11P01800

  • ZD11P01800 - O-RING

31 ZD11P01000

  • ZD11P01000 - O-RING

32 2489R293S7

  • 2489R293S7 - BALL

33 NSS

  • NSS - NOT SOLD SEPARAT

34 YN58S00009F2

  • YN58S00009F2 - GAUGE

35 YN58S00009F2

  • YN58S00009F2 - GAUGE

36 NSS

  • NSS - NOT SOLD SEPARAT

37 NSS

  • NSS - NOT SOLD SEPARAT

38 NSS

  • NSS - NOT SOLD SEPARAT

39 NSS

  • NSS - NOT SOLD SEPARAT

40 NSS

  • NSS - NOT SOLD SEPARAT

41 NSS

  • NSS - NOT SOLD SEPARAT

42 ZS18C08016

  • ZS18C08016 - SCREW
  • Hex
  • M8 x 16mm

43 PH33H00008F1

  • PH33H00008F1 - TANK INSTAL
  • HYD

44 ZS18C10025

  • ZS18C10025 - SCREW
  • Hex
  • M10 x 25mm

45 ZW16H10000

  • ZW16H10000 - WASHER
