(SK40SR) - COMPACT EXCAVATOR ASN PH04-02801 (NA) (1/90-12/04)
/

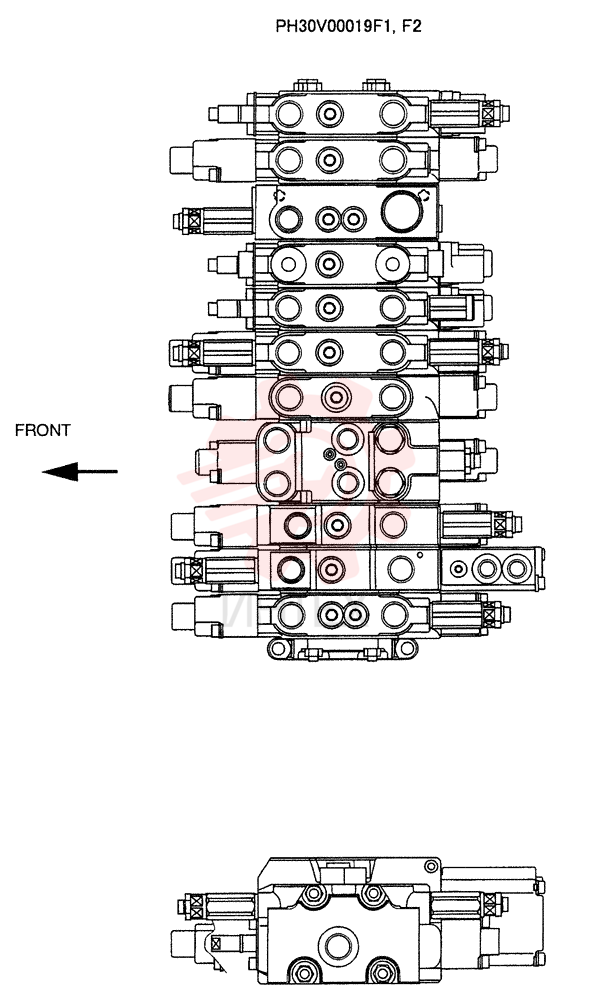

VALVE PH30V00019F1 (1)

VALVE PH30V00019F1 (1)

VALVE PH30V00019F1 (1)

1 PH30V00019F1

  • PH30V00019F1 - VALVE

2 PH30V00019F2

  • PH30V00019F2 - VALVE

3 PH30V00020F1

  • PH30V00020F1 - CONTROL VALVE

4 PH30V00021F1

  • PH30V00021F1 - VALVE

5 PH30V00022F1

  • PH30V00022F1 - VALVE

6 PH30V00023F1

  • PH30V00023F1 - VALVE

7 PH30V00024F1

  • PH30V00024F1 - VALVE

8 PH30V00025F1

  • PH30V00025F1 - VALVE

9 PH30V00026F1

  • PH30V00026F1 - VALVE

10 PH30V00027F1

  • PH30V00027F1 - VALVE

11 PH30V00028F1

  • PH30V00028F1 - VALVE

12 PH30V00029F1

  • PH30V00029F1 - VALVE

13 PH30V00030F1

  • PH30V00030F1 - CONTROL VALVE

14 PH30V00001S012

  • PH30V00001S012 - COVER

15 YN01V00004S006

  • YN01V00004S006 - O-RING

16 ZD12P02000

  • ZD12P02000 - O-RING
  • 2.4mm Thk x 19.8mm ID
  • 90 Duro

17 ZS23C06040

  • ZS23C06040 - SCREW
  • Hex Socket Head
  • M6 x 40mm

18 PW30V00003S013

  • PW30V00003S013 - BOLT

19 PH30V00001S021

  • PH30V00001S021 - BOLT

20 ZN16C08007

  • ZN16C08007 - NUT

21 ZD12P01400

  • ZD12P01400 - O-RING

22 ZD12P00600

  • ZD12P00600 - O-RING

23 PH30V00025F2

  • PH30V00025F2 - VALVE

24 PH30V00019F1

  • PH30V00019F1 - VALVE

25 PH30V00019F2

  • PH30V00019F2 - VALVE

26 PH30V00020F1

  • PH30V00020F1 - CONTROL VALVE

27 PH30V00021F1

  • PH30V00021F1 - VALVE

28 PH30V00022F1

  • PH30V00022F1 - VALVE

29 PH30V00023F1

  • PH30V00023F1 - VALVE

30 PH30V00024F1

  • PH30V00024F1 - VALVE

31 PH30V00025F1

  • PH30V00025F1 - VALVE

32 PH30V00026F1

  • PH30V00026F1 - VALVE

33 PH30V00027F1

  • PH30V00027F1 - VALVE

34 PH30V00028F1

  • PH30V00028F1 - VALVE

35 PH30V00029F1

  • PH30V00029F1 - VALVE

36 PH30V00030F1

  • PH30V00030F1 - CONTROL VALVE

37 PH30V00001S012

  • PH30V00001S012 - COVER

38 YN01V00004S006

  • YN01V00004S006 - O-RING

39 ZD12P02000

  • ZD12P02000 - O-RING
  • 2.4mm Thk x 19.8mm ID
  • 90 Duro

40 ZS23C06040

  • ZS23C06040 - SCREW
  • Hex Socket Head
  • M6 x 40mm

41 PW30V00003S013

  • PW30V00003S013 - BOLT

42 PH30V00001S021

  • PH30V00001S021 - BOLT

43 ZN16C08007

  • ZN16C08007 - NUT

44 ZD12P01400

  • ZD12P01400 - O-RING

45 ZD12P00600

  • ZD12P00600 - O-RING

46 PH30V00025F2

  • PH30V00025F2 - VALVE
