(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

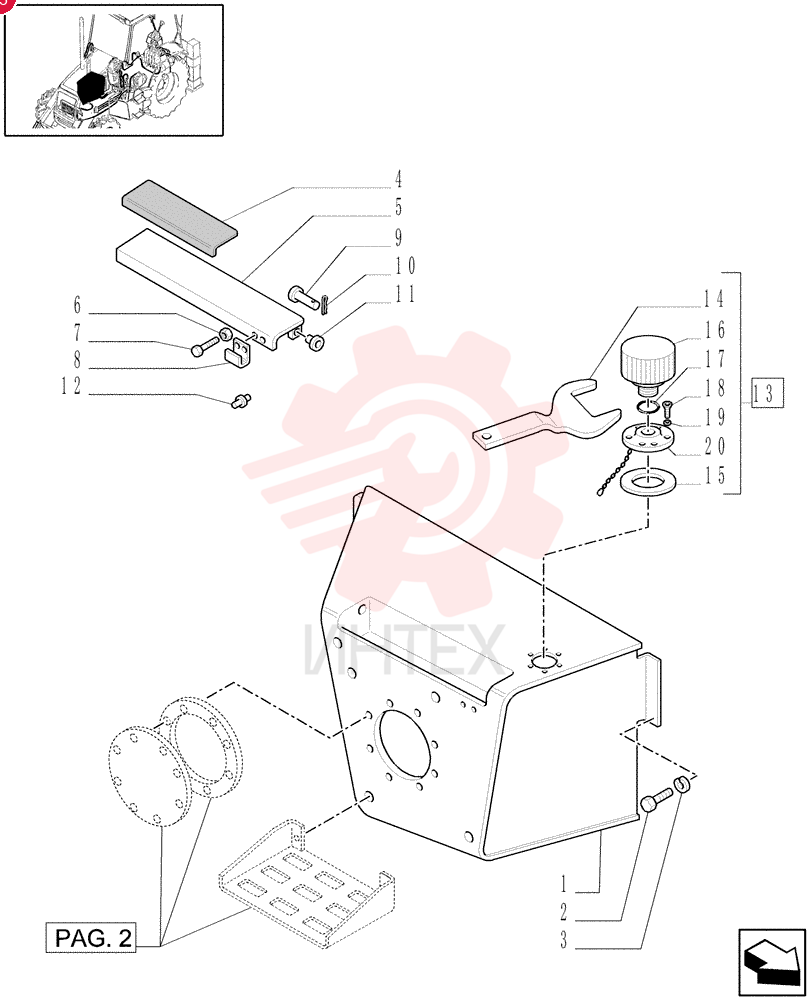

RESERVOIR, HYDRAULIC 85801214

RESERVOIR, HYDRAULIC 85801214

RESERVOIR, HYDRAULIC 85801214

1 85801214

  • 85801214 - RESERVOIR
  • HYDRAULIC

2 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

3 11190774

  • 11190774 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

4 85802808

  • 85802808 - ANTI-SKID STRIP

5 85803073

  • 85803073 - LID

6 15896421

  • 15896421 - NUT
  • M5
  • Cl 10

7 13274021

  • 13274021 - SCREW
  • Pozidriv Pan Hd
  • M5 x 12mm
  • Cl 8.8

8 85803075

  • 85803075 - BRACKET

9 10041211

  • 10041211 - PIN

10 10734201

  • 10734201 - COTTER PIN
  • M2 x 12

11 85803093

  • 85803093 - NYLON BEARING

12 14567080

  • 14567080 - FASTENER
  • Stud
  • Ribbed
  • 5.50mm x 4mm x 1mm
  • Plastic

13 85801250

  • 85801250 - BREATHER

14 85802580

  • 85802580 - SPECIAL WRENCH

15 9969380

  • 9969380 - SEAL

16 85813350

  • 85813350 - SERVICE KIT

17 85813351

  • 85813351 - O-RING

18 85813353

  • 85813353 - SCREW

19 85813354

  • 85813354 - O-RING

20 85813352

  • 85813352 - FLANGE
