(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

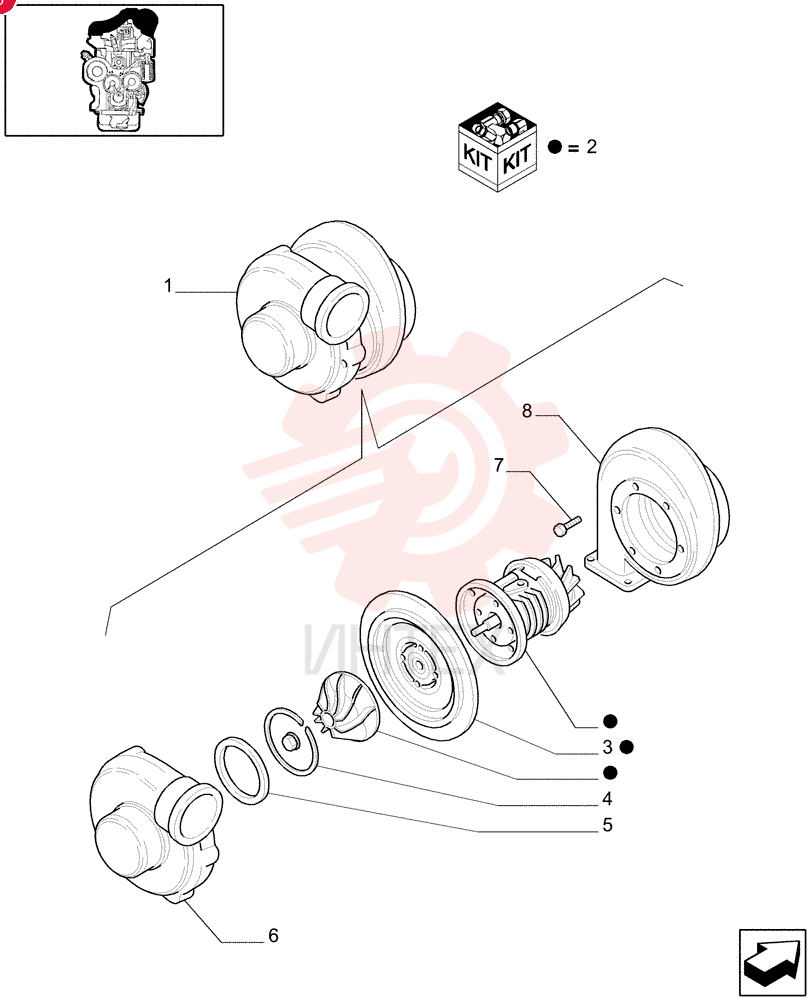

TURBOCHARGER 83999247 (1)

TURBOCHARGER 83999247 (1)

TURBOCHARGER 83999247 (1)

1 83999247

  • 83999247 - TURBOCHARGER

2 83999247R

  • 83999247R - REMAN-TURBOCHARGER

3 83999247C

  • 83999247C - CORE-TURBOCHARGER

4 81867227

  • 81867227 - REPAIR KIT

5 81867218

  • 81867218 - PLATE

6 83977909

  • 83977909 - SNAP RING

7 81867220

  • 81867220 - O-RING

8 81867226

  • 81867226 - HOUSING

9 81867216

  • 81867216 - SCREW

10 F1NN6N677AA

  • F1NN6N677AA - HOUSING
