New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

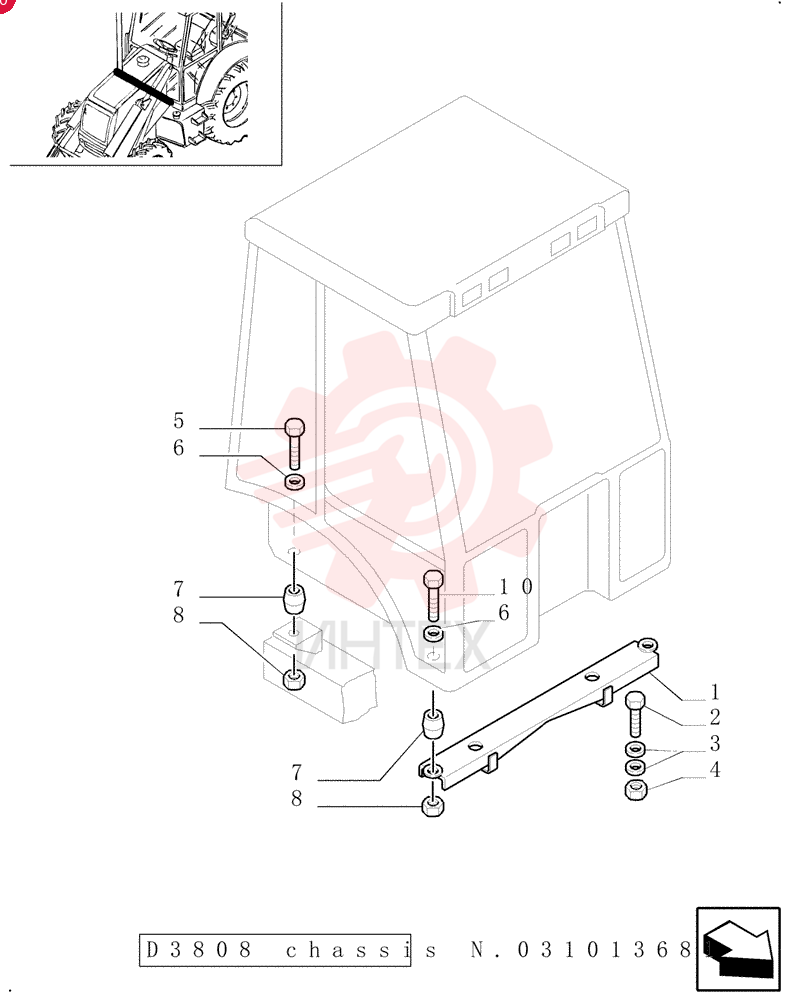

SUPPORT 85801319

SUPPORT 85801319

SUPPORT 85801319

1 85801319

  • 85801319 - SUPPORT

2 15989334

  • 15989334 - BOLT
  • Hex
  • M20 x 1.5 x 110mm
  • Cl 10.9

3 10520431

  • 10520431 - WASHER
  • 21mm ID x 35mm OD x 4mm Thk

4 12575121

  • 12575121 - NUT
  • M20 x 1.5
  • Cl 10

5 11369634

  • 11369634 - BOLT
  • Hex
  • M16 x 1.5 x 110
  • 10.9

6 15981834

  • 15981834 - BOLT
  • Hex
  • M16 x 1.5 x 120mm
  • Cl 10.9

7 14496931

  • 14496931 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

8 85802970

  • 85802970 - RUBBER MOUNTING

9 15504021

  • 15504021 - NUT
  • M16 x 1.5

10 85801324

  • 85801324 - SPACER
  • 21mm ID x 30mm OD x 50mm L

11 15864334

  • 15864334 - BOLT
  • Hex
  • M16 x 1.5 x 130mm
  • Cl 10.9

12 15982131

  • 15982131 - BOLT
  • Hex
  • M16 x 1.5 x 140mm
  • Cl 10.9
