New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

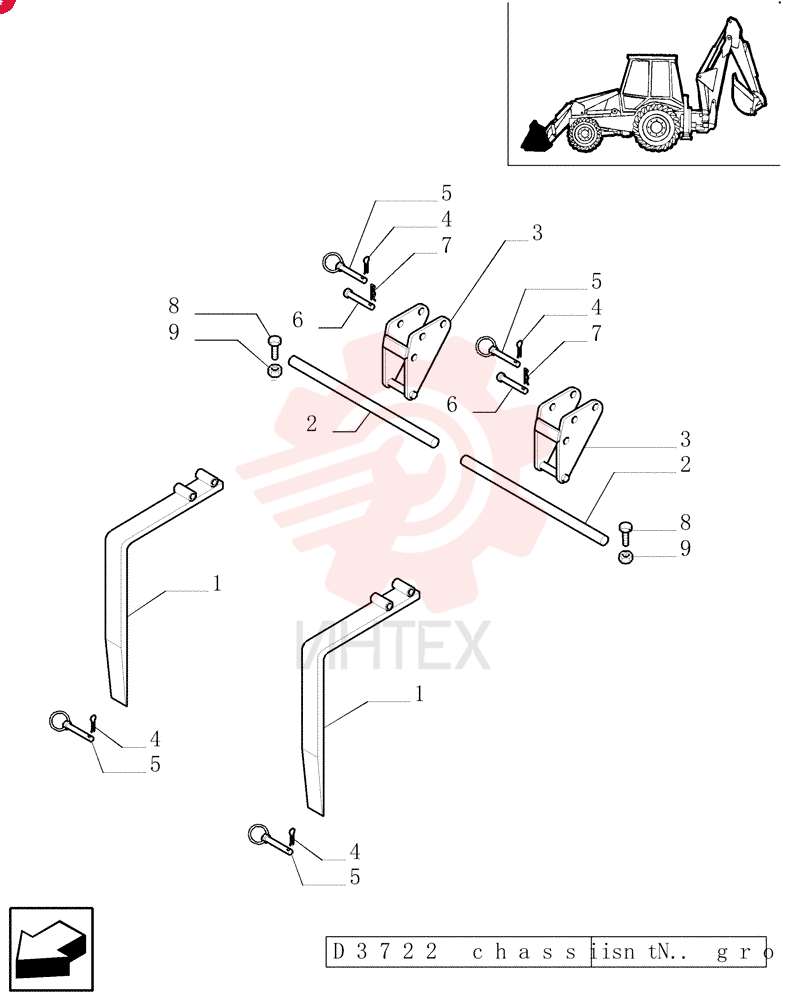

FORK 9968144 (5)

FORK 9968144 (5)

FORK 9968144 (5)

1 9968144

  • 9968144 - FORK

2 9968585

  • 9968585 - ROD

3 9968176

  • 9968176 - SUPPORT

4 9968147

  • 9968147 - ROLL PIN

5 9968148

  • 9968148 - LOCK PIN
  • 25mm OD x 182mm L

6 9968150

  • 9968150 - COTTER PIN

7 9968149

  • 9968149 - PIN

8 9968586

  • 9968586 - SCREW

9 9968152

  • 9968152 - NUT
