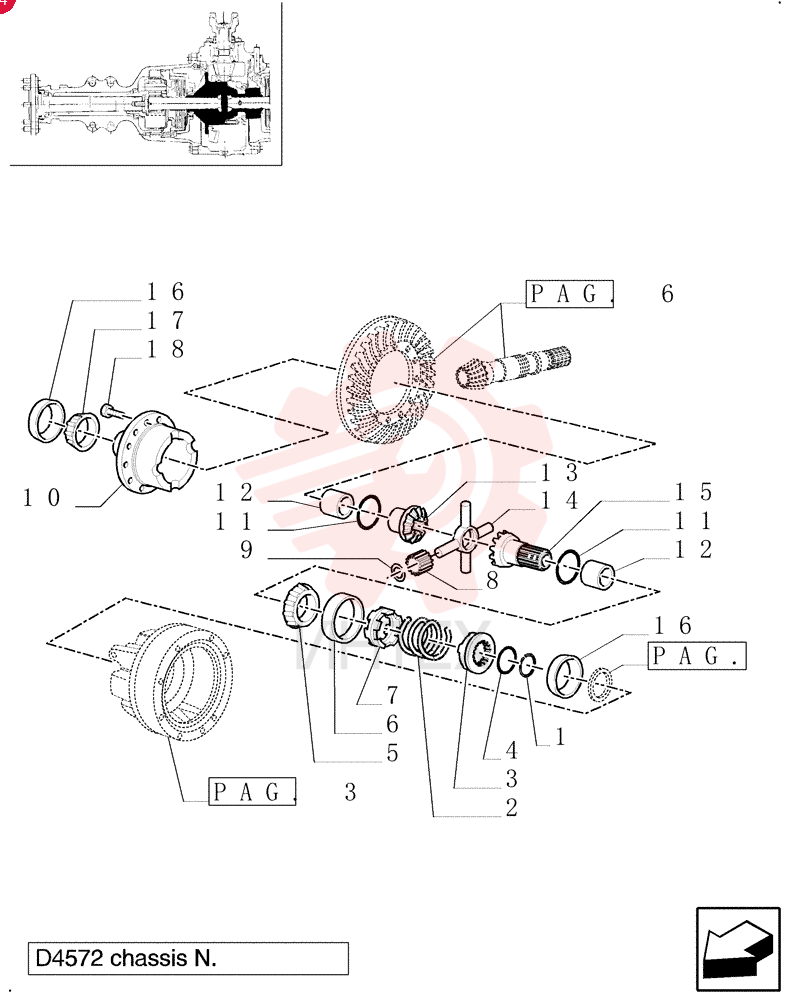

(575E) - TRACTOR LOADER BACKHOE (1/96-)
/
SNAP RING,2.37" ID 81803474 (1)

SNAP RING,2.37" ID 81803474 (1)

SNAP RING,2.37" ID 81803474 (1)

1 81803474

  • 81803474 - SNAP RING
  • 2.37" ID

2 81800474

  • 81800474 - SPRING

3 F1NN4N064AA

  • F1NN4N064AA - COUPLING
  • 27 T

4 81871527

  • 81871527 - COUPLING
  • 27T

5 81800475

  • 81800475 - WASHER
  • 64.64mm ID x 78.74mm OD x 3.25mm Thk

6 81803413

  • 81803413 - ROLLER BEARING
  • 107.95mm ID x 21.44mm W

7 81803420

  • 81803420 - BEARING CUP
  • 158.75mm OD x 15.88mm W

8 81800472

  • 81800472 - ADAPTER

9 81728114

  • 81728114 - PINION
  • 9 Teeth

10 83989915

  • 83989915 - THRUST WASHER
  • 1" x 2" x .060" Thk

11 81816246

  • 81816246 - HOUSING

12 81803424

  • 81803424 - THRUST WASHER
  • 76.2mm ID x 101.6mm OD x 1.58mm Thk

13 81800471

  • 81800471 - BUSHING
  • 72.08mm ID x 75.21mm OD x 31.75mm L

14 81803445

  • 81803445 - GEAR
  • 38 Teeth

15 81876885

  • 81876885 - SPIDER
  • 28.4mm Cap Dia
  • 179.3mm L

16 81803451

  • 81803451 - GEAR
  • 27 Teeth

17 510892

  • 510892 - BEARING CUP
  • 112.71mm OD x 23.81mm W

18 510884

  • 510884 - BEARING CONE
  • 66.69mm ID x 30.05mm W

19 83994579

  • 83994579 - LOCK BOLT
  • 1/2" - 13 x 2-7/8"
  • Gr 8
