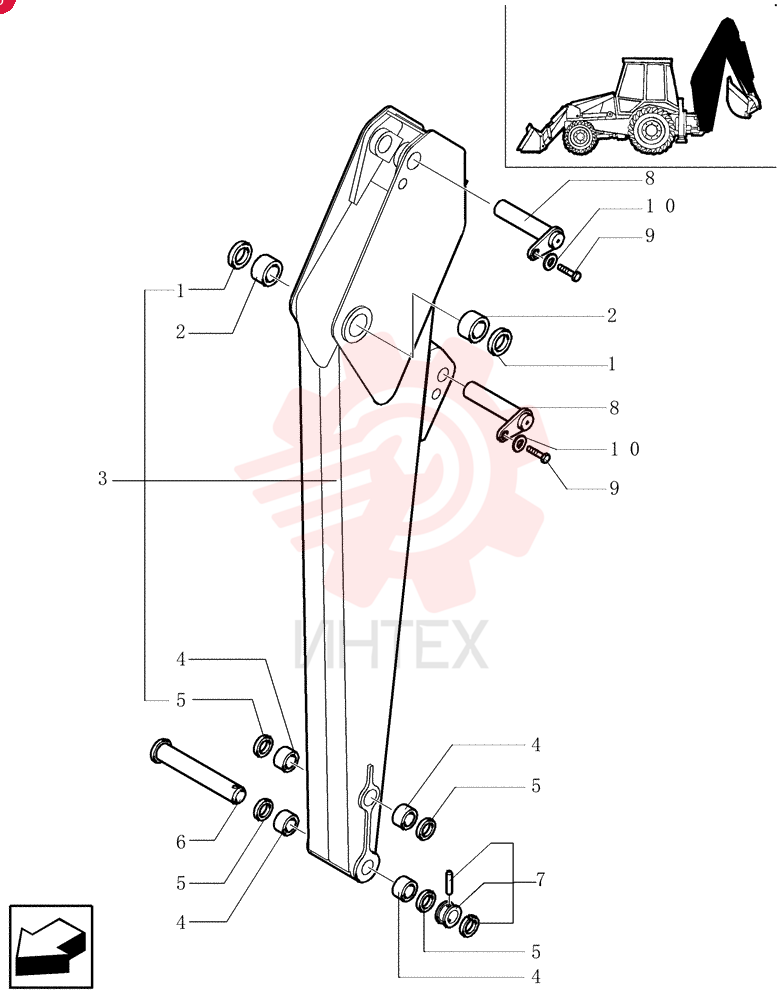

SEAL 9824067

SEAL 9824067

SEAL 9824067

1 9824067

  • 9824067 - SEAL

2 83910546

  • 83910546 - BUSHING
  • 55.18mm ID x 71.01mm OD x 50.5mm L
  • 2.175" ID x 2.80" OD x 1.969"

3 85801074

  • 85801074 - DIPPER

4 83910548

  • 83910548 - BUSHING
  • 45.18mm ID x 61.01mm OD x 50.5mm L

5 83931289

  • 83931289 - SEAL
  • 43.38mm ID x 55.1mm OD x 3.18mm Thk
  • SEALRING

6 85803005

  • 85803005 - PIN
  • 45mm OD x 319mm L

7 85802975

  • 85802975 - LINCH PIN
  • 10mm OD x 64.5mm L

8 85803002

  • 85803002 - PIN
  • 45mm OD x 199mm L

9 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9

10 85802396

  • 85802396 - WASHER
  • 16.76mm ID x 38.1mm OD x 6.35mm Thk
