New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

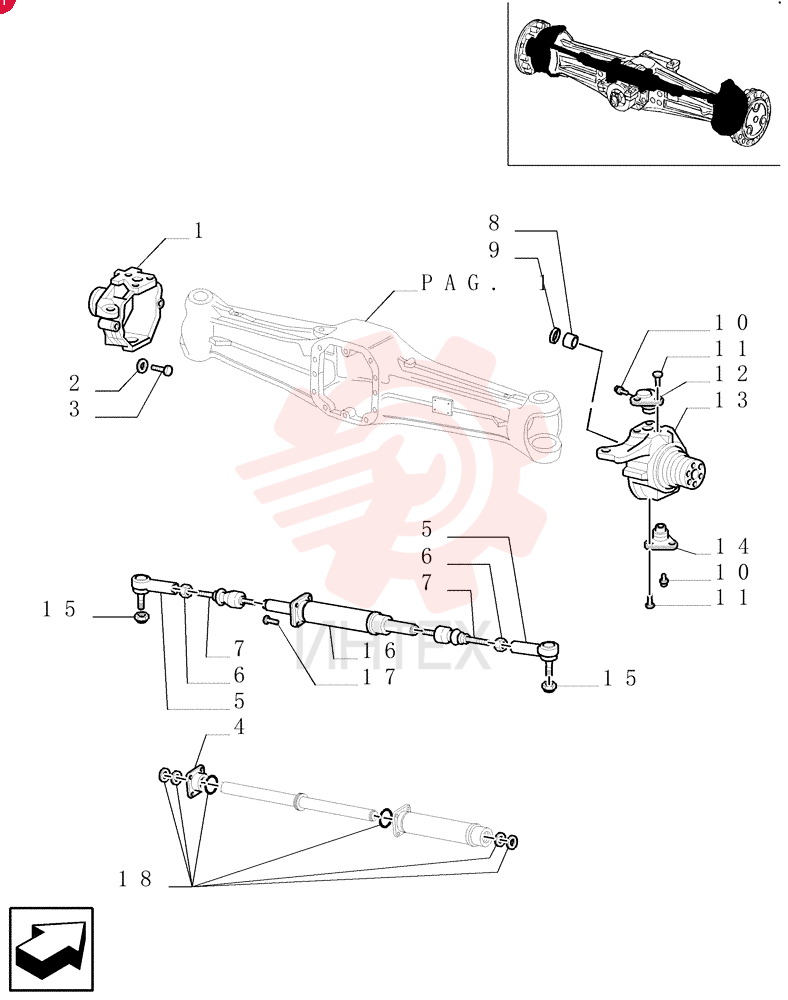

STEERING KNUCKLE 9968012

STEERING KNUCKLE 9968012

STEERING KNUCKLE 9968012

1 9968012

  • 9968012 - STEERING KNUCKLE
  • LH

2 9968013

  • 9968013 - NUT
  • M14

3 9968014

  • 9968014 - SCREW
  • M14 x 60
  • Turn Angle Adjustment

4 9968030

  • 9968030 - CYLINDER HEAD

5 9968016

  • 9968016 - BALL JOINT
  • RH

6 9968017

  • 9968017 - NUT
  • Hex
  • M24 x 1.5

7 9968018

  • 9968018 - ARTICULATION
  • M22 / M24

8 9968019

  • 9968019 - BUSHING

9 9968020

  • 9968020 - SEAL
  • 35 x 52 x 16

10 9968021

  • 9968021 - LUBE NIPPLE
  • M6 x 1 x 16mm OAL

11 9968022

  • 9968022 - SCREW
  • M14 x 2 x 35mm

12 9968023

  • 9968023 - PIVOT

13 9968024

  • 9968024 - STEERING KNUCKLE
  • RH

14 9968025

  • 9968025 - PIVOT

15 9968026

  • 9968026 - NUT
  • M20

16 9968027

  • 9968027 - STEERING CYLINDER

17 9968028

  • 9968028 - SCREW
  • M12 x 45

18 9968029

  • 9968029 - SEAL KIT
