New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

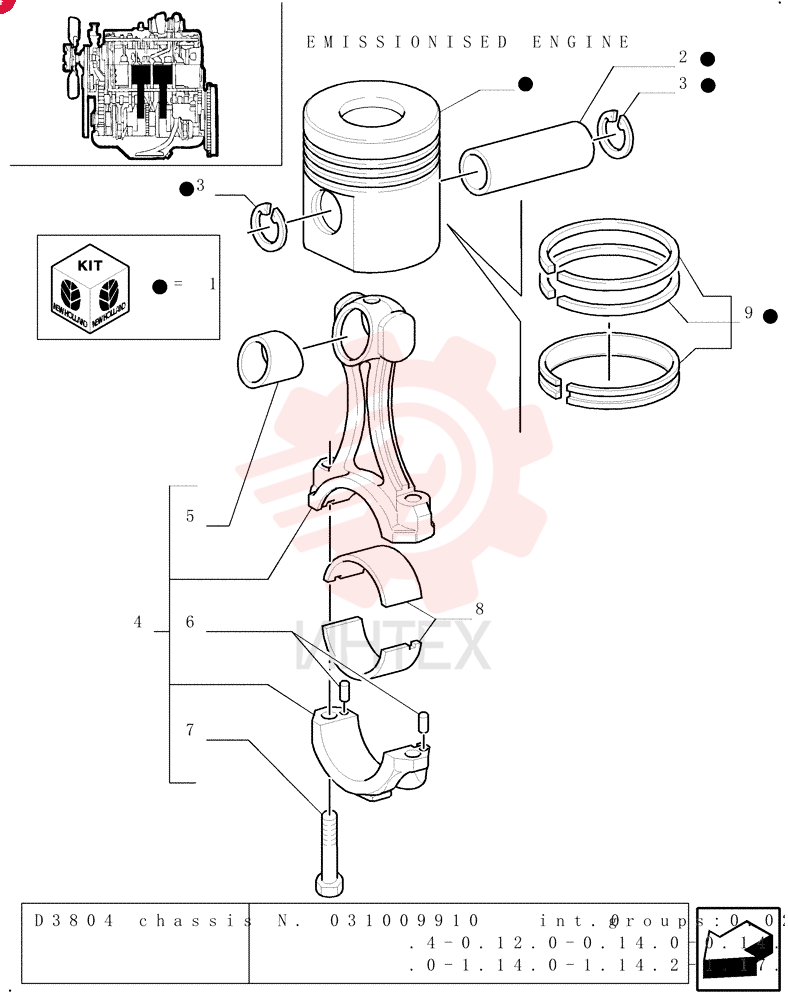

PISTON & RINGS KIT 87801050

PISTON & RINGS KIT 87801050

PISTON & RINGS KIT 87801050

1 87801050

  • 87801050 - PISTON & RINGS KIT

2 87801266

  • 87801266 - PISTON & RINGS KIT

3 87801741

  • 87801741 - PISTON PIN
  • 41.27mm OD x 94.49mm L

4 87801744

  • 87801744 - PISTON PIN
  • 38.1mm OD x 89.15mm L

5 271429

  • 271429 - SNAP RING
  • 1.625"
  • Int
  • #162

6 167111

  • 167111 - SNAP RING
  • 1.50"
  • Int
  • #150

7 87801218

  • 87801218 - CONNECTING ROD

8 84144055

  • 84144055 - CONNECTING ROD

9 84144055R

  • 84144055R - REMAN-CONNECTING ROD

10 84144055C

  • 84144055C - CORE-ROD CONNECTING

11 87840995

  • 87840995 - BUSHING
  • 37.7mm ID x 41.4mm OD x 41.1mm L

12 87840994

  • 87840994 - BUSHING
  • 40.74mm ID x 44.44mm OD x 41.2mm L

13 83991680

  • 83991680 - PIN

14 87802307

  • 87802307 - BOLT
  • Flng
  • 1/2" - 20 x 55.4mm

15 87790304

  • 87790304 - BEARING SET

16 87791049

  • 87791049 - SET OF CONN ROD BRGS STD

17 87801086

  • 87801086 - PISTON RINGS KIT

18 87802355

  • 87802355 - PISTON RINGS KIT
