New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

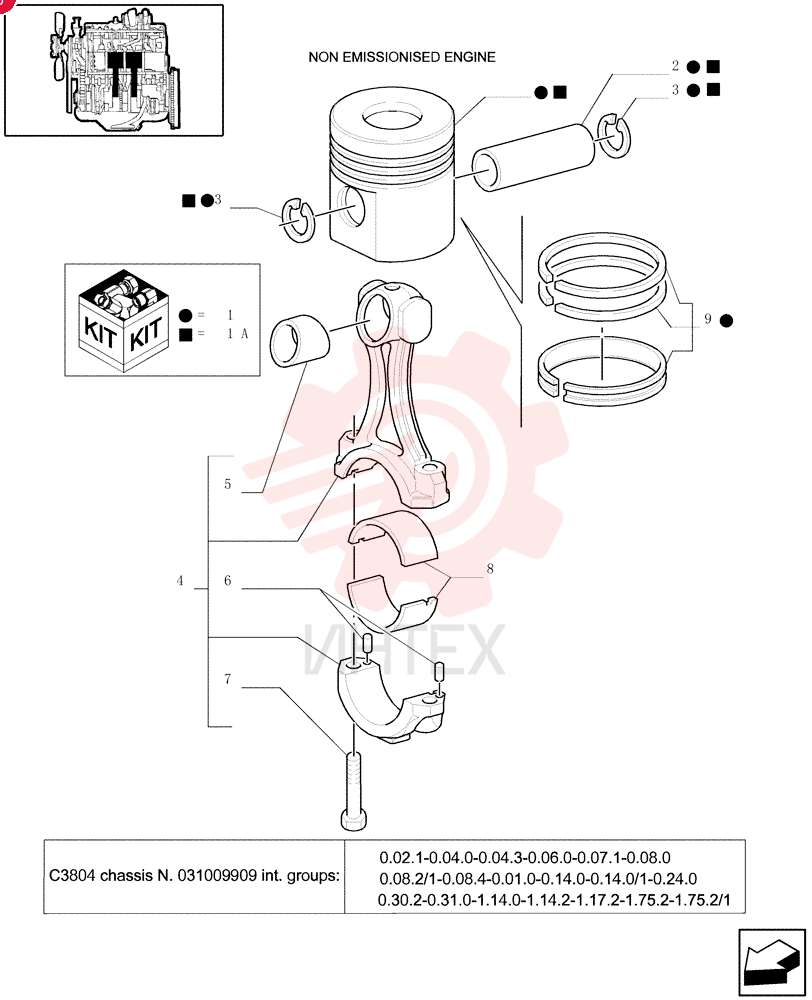

PISTON & RINGS KIT 87801070

PISTON & RINGS KIT 87801070

PISTON & RINGS KIT 87801070

1 87801070

  • 87801070 - PISTON & RINGS KIT

2 81873442

  • 81873442 - PISTON ASSY +0.2

3 81873446

  • 81873446 - PISTON ASSY +0.4

4 87801071

  • 87801071 - PISTON & RINGS KIT

5 81873450

  • 81873450 - PISTON ASSY +0.4

6 84470892

  • 84470892 - PISTON ASSY +0.2

7 81873453

  • 81873453 - PISTON ASSY

8 81873455

  • 81873455 - PISTON ASSY +0.4

9 87801072

  • 87801072 - PISTON & RINGS KIT

10 81873457

  • 81873457 - PISTON ASSY +0.4

11 81873458

  • 81873458 - PISTON ASSY +0.2

12 81873460

  • 81873460 - PISTON ASSY

13 81873461

  • 81873461 - PISTON ASSY +0.4

14 87801741

  • 87801741 - PISTON PIN
  • 41.27mm OD x 94.49mm L

15 87801744

  • 87801744 - PISTON PIN
  • 38.1mm OD x 89.15mm L

16 271429

  • 271429 - SNAP RING
  • 1.625"
  • Int
  • #162

17 167111

  • 167111 - SNAP RING
  • 1.50"
  • Int
  • #150

18 87801218

  • 87801218 - CONNECTING ROD

19 87801218R

  • 87801218R - REMAN-CONNECTING ROD

20 87801218C

  • 87801218C - CORE-ROD CONNECTING

21 84144055

  • 84144055 - CONNECTING ROD

22 84144055R

  • 84144055R - REMAN-CONNECTING ROD

23 84144055C

  • 84144055C - CORE-ROD CONNECTING

24 87840994

  • 87840994 - BUSHING
  • 40.74mm ID x 44.44mm OD x 41.2mm L

25 87840995

  • 87840995 - BUSHING
  • 37.7mm ID x 41.4mm OD x 41.1mm L

26 83991680

  • 83991680 - PIN

27 87802307

  • 87802307 - BOLT
  • Flng
  • 1/2" - 20 x 55.4mm

28 87790304

  • 87790304 - BEARING SET

29 87790305

  • 87790305 - SET OF CONN ROD BRGS U/S

30 87790306

  • 87790306 - BEARING SET

31 87790307

  • 87790307 - BEARING SET

32 87790308

  • 87790308 - BEARING SET

33 87790309

  • 87790309 - SET OF CONN ROD BRGS U/S

34 87791049

  • 87791049 - SET OF CONN ROD BRGS STD

35 87791050

  • 87791050 - SET OF CONN ROD BRGS U/S

36 87791051

  • 87791051 - SET OF CONN ROD BRGS U/S

37 87791052

  • 87791052 - SET OF CONN ROD BRGS U/S

38 87791053

  • 87791053 - SET OF CONN ROD BRGS U/S

39 87791054

  • 87791054 - SET OF CONN ROD BRGS U/S

40 87801086

  • 87801086 - PISTON RINGS KIT

41 87802359

  • 87802359 - PISTON RINGS KIT

42 87801089

  • 87801089 - PISTON RINGS KIT

43 87802355

  • 87802355 - PISTON RINGS KIT

44 87802356

  • 87802356 - PISTON RINGS KIT

45 87802357

  • 87802357 - PISTON RINGS KIT
