New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

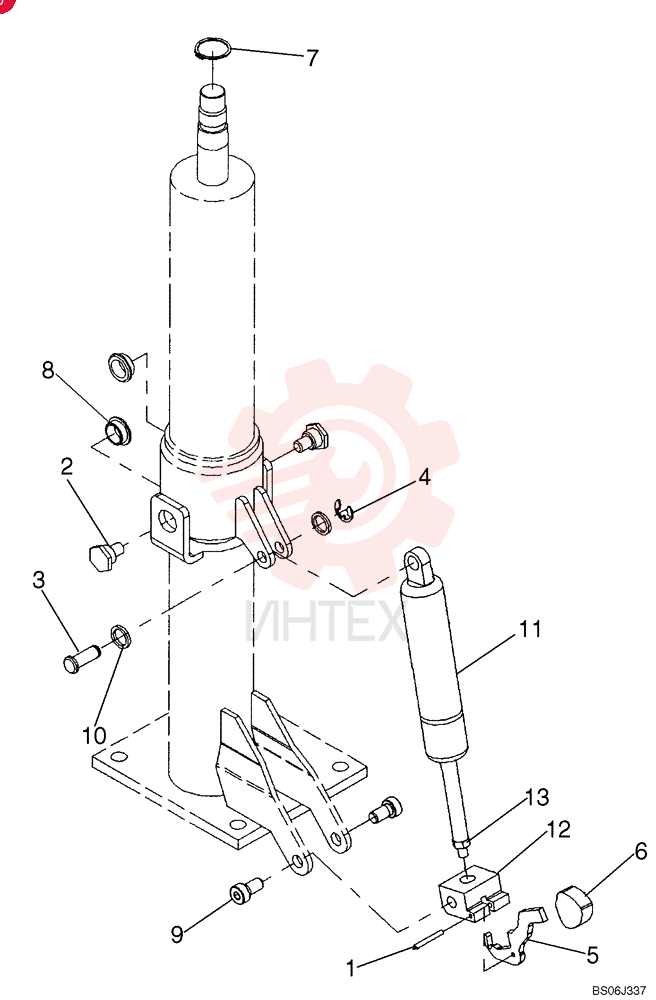

STEERING COLUMN,Telescoping 87560586

STEERING COLUMN,Telescoping 87560586

STEERING COLUMN,Telescoping 87560586

1 87560586

  • 87560586 - STEERING COLUMN
  • Telescoping
  • Incl. 1 - 13
  • Serial Range: -31003958

2 87328171

  • 87328171 - PIN
  • 3mm OD x 26mm L

3 87328170

  • 87328170 - SCREW

4 87328167

  • 87328167 - PIN

5 87328166

  • 87328166 - CIRCLIP

6 87328165

  • 87328165 - LEVER

7 87328159

  • 87328159 - KNOB

8 87328146

  • 87328146 - LOCKING RING

9 87328140

  • 87328140 - BUSHING

10 87328138

  • 87328138 - SCREW
  • M8 x 10mm

11 87328137

  • 87328137 - SPACER

12 87560589

  • 87560589 - GAS STRUT

13 87328134

  • 87328134 - BLOCK

14 87565313

  • 87565313 - SPRING NUT
