New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

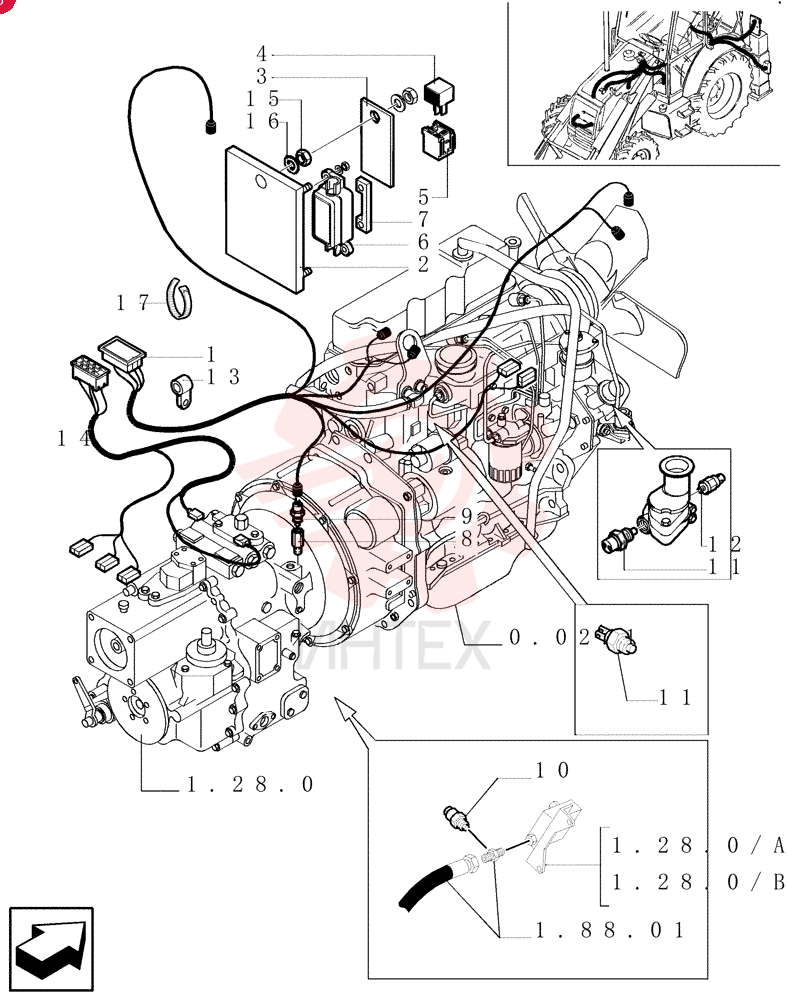

WIRE HARNESS 85805809

WIRE HARNESS 85805809

WIRE HARNESS 85805809

1 85805809

  • 85805809 - WIRE HARNESS

2 85805687

  • 85805687 - SUPPORT

3 85803862

  • 85803862 - PLATE

4 85805162

  • 85805162 - RELAY
  • 12V
  • 70A

5 85803865

  • 85803865 - ELEC CONNECTOR

6 85803864

  • 85803864 - FUSE HOLDER

7 12393149

  • 12393149 - FUSED LINK

8 85803524

  • 85803524 - ADAPTER
  • M16 x 1.5 x 9/16" - 18 ORB

9 85803879

  • 85803879 - SENSOR
  • M16 x 1.5

10 85812012

  • 85812012 - PRESSURE SWITCH

11 81873524

  • 81873524 - PRESSURE SWITCH
  • 1/4" - 18 NPTF

12 85802504

  • 85802504 - SENSOR
  • 3/8" - 18

13 85802889

  • 85802889 - CLAMP

14 85805685

  • 85805685 - HOSE CLIP
  • 38.1mm ID

15 85805686

  • 85805686 - HOSE CLIP

16 85805810

  • 85805810 - WIRE HARNESS

17 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

18 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

19 14560187

  • 14560187 - COLLAR
  • 199mm L
