New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

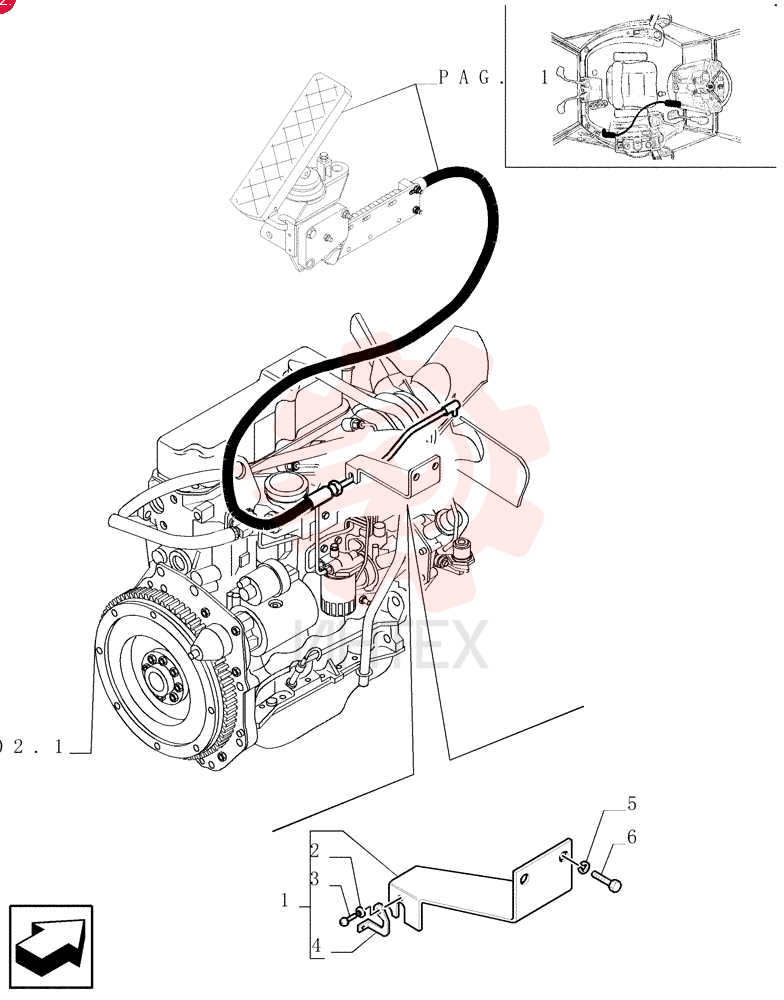

SUPPORT 85806130

SUPPORT 85806130

SUPPORT 85806130

1 85806130

  • 85806130 - SUPPORT

2 12604171

  • 12604171 - LOCK WASHER

3 13769401

  • 13769401 - RIVET

4 85803040

  • 85803040 - RETAINER

5 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

6 16043424

  • 16043424 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd
