New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

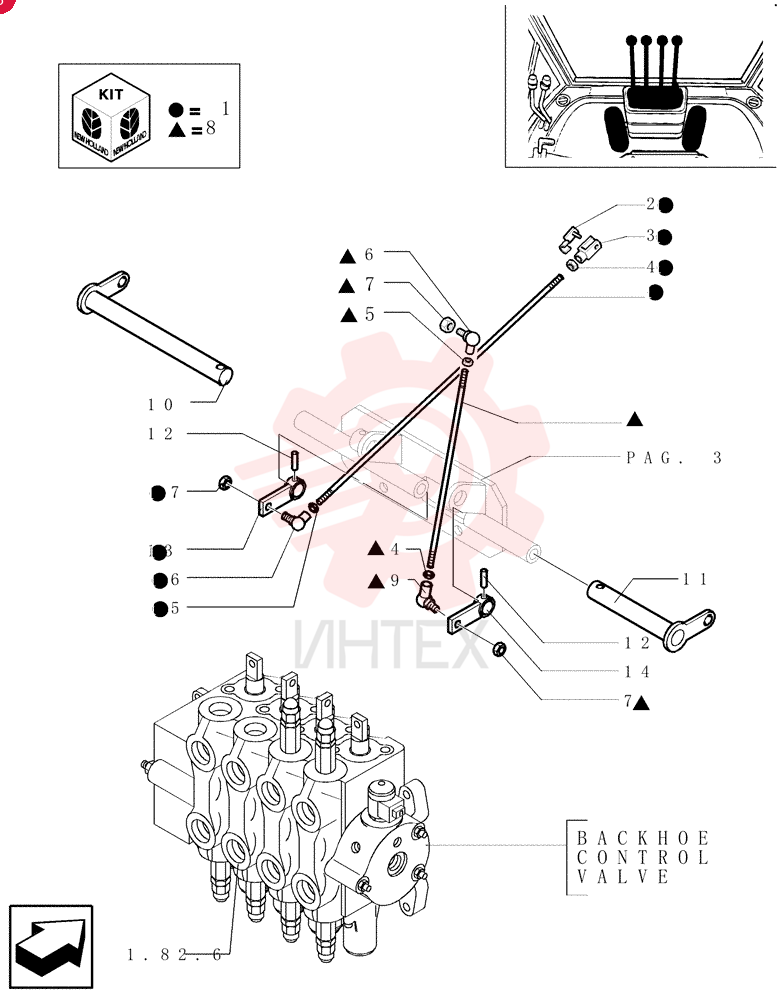

TIE-ROD 85805033 (2)

TIE-ROD 85805033 (2)

TIE-ROD 85805033 (2)

1 85805033

  • 85805033 - TIE-ROD

2 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

3 11991971

  • 11991971 - CLEVIS
  • M8
  • LH

4 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

5 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

6 85804375

  • 85804375 - BALL JOINT
  • M8
  • RH

7 14048221

  • 14048221 - NUT
  • M8 x 1.25
  • Cl 10

8 85805035

  • 85805035 - TIE-ROD

9 85804376

  • 85804376 - BALL JOINT
  • M8
  • LH

10 85805039

  • 85805039 - PIN
  • LH

11 85805038

  • 85805038 - PIN
  • RH

12 13940370

  • 13940370 - ROLL PIN
  • M5 x 26
  • Coiled

13 85803492

  • 85803492 - ARM

14 85805037

  • 85805037 - ARM
