New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

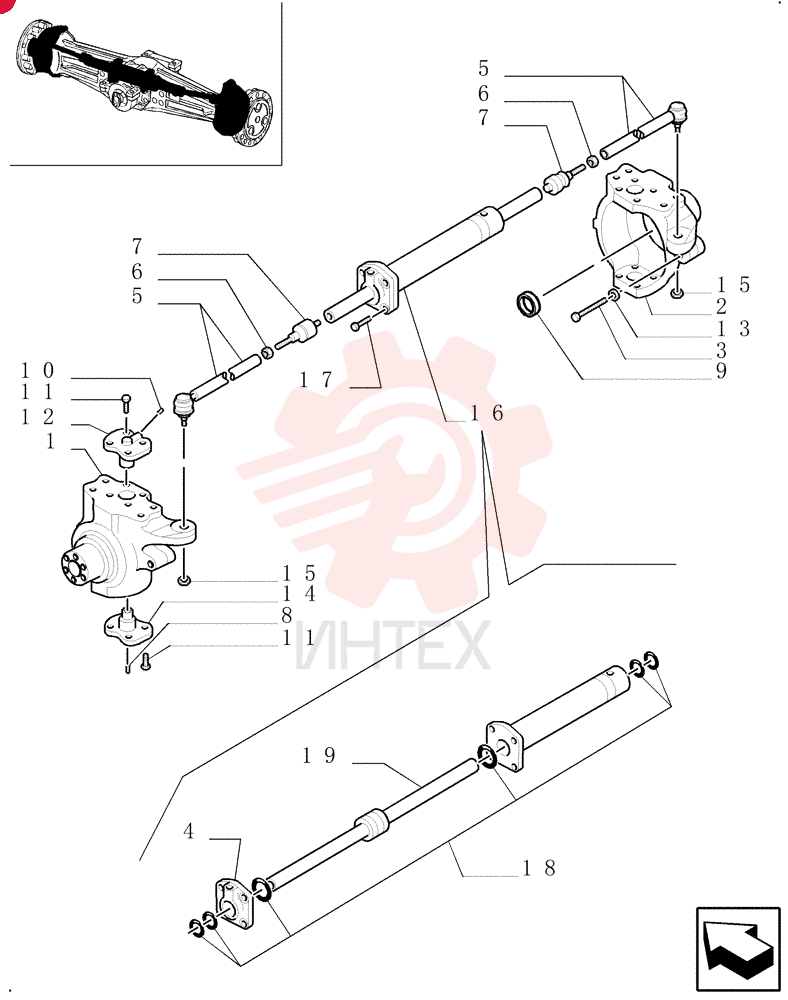

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (1)

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (1)

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (1)

1 85805981

  • 85805981 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 6 Holes (Hub Side)
  • 65mm ID (Seal Ring Seat)

2 85805985

  • 85805985 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 6 Holes (Hub Side)
  • 65mm ID (Seal Ring Seat)

3 85805987

  • 85805987 - SCREW
  • M16 x 100mm

4 85805989

  • 85805989 - CYLINDER HEAD

5 85805977

  • 85805977 - TIE-ROD

6 85805976

  • 85805976 - NUT
  • M18 x 1.5

7 85805975

  • 85805975 - BALL JOINT
  • M18 / M20

8 85805984

  • 85805984 - LUBE NIPPLE

9 85805708

  • 85805708 - PLUG

10 9968021

  • 9968021 - LUBE NIPPLE
  • M6 x 1 x 16mm OAL

11 85805979

  • 85805979 - SCREW
  • Hex Flng
  • M12 x 1.75 x 30mm

12 85805980

  • 85805980 - PIN

13 85805986

  • 85805986 - NUT
  • M16

14 85805983

  • 85805983 - PIN

15 85805982

  • 85805982 - NUT
  • M18 x 1.5

16 85805978

  • 85805978 - STEERING CYLINDER

17 85805978R

  • 85805978R - REMAN-HYD CYLINDER

18 85805978C

  • 85805978C - CORE-HYD CYLINDER

19 9968028

  • 9968028 - SCREW

20 85805990

  • 85805990 - OIL SEAL

21 85805992

  • 85805992 - ROD
