New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

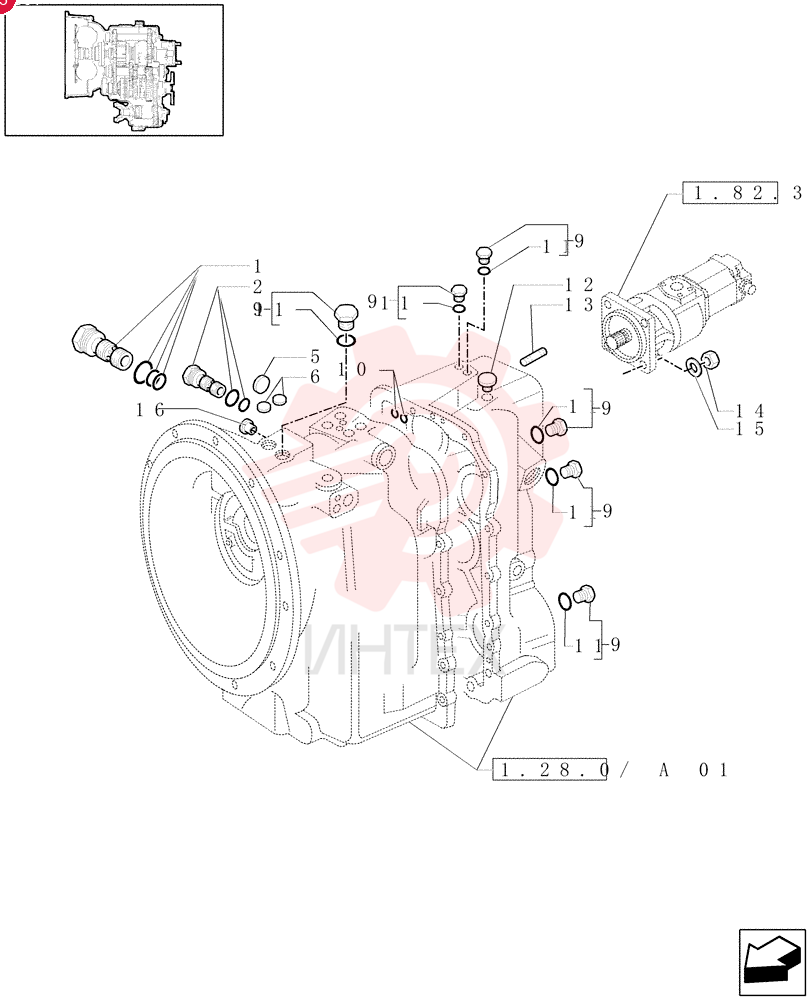

CONTROL VALVE 9968350 (1)

CONTROL VALVE 9968350 (1)

CONTROL VALVE 9968350 (1)

1 9968350

  • 9968350 - CONTROL VALVE

2 9968334

  • 9968334 - VALVE PRESSURE RELIE

3 9968371

  • 9968371 - PLUG

4 9968333

  • 9968333 - PLUG

5 9968219

  • 9968219 - PLUG

6 9968368

  • 9968368 - SEALING RING

7 9968218

  • 9968218 - SEALING RING

8 9968364

  • 9968364 - BREATHER

9 85802683

  • 85802683 - STUD

10 85802684

  • 85802684 - NUT

11 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

12 85812094

  • 85812094 - PLUG
