New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

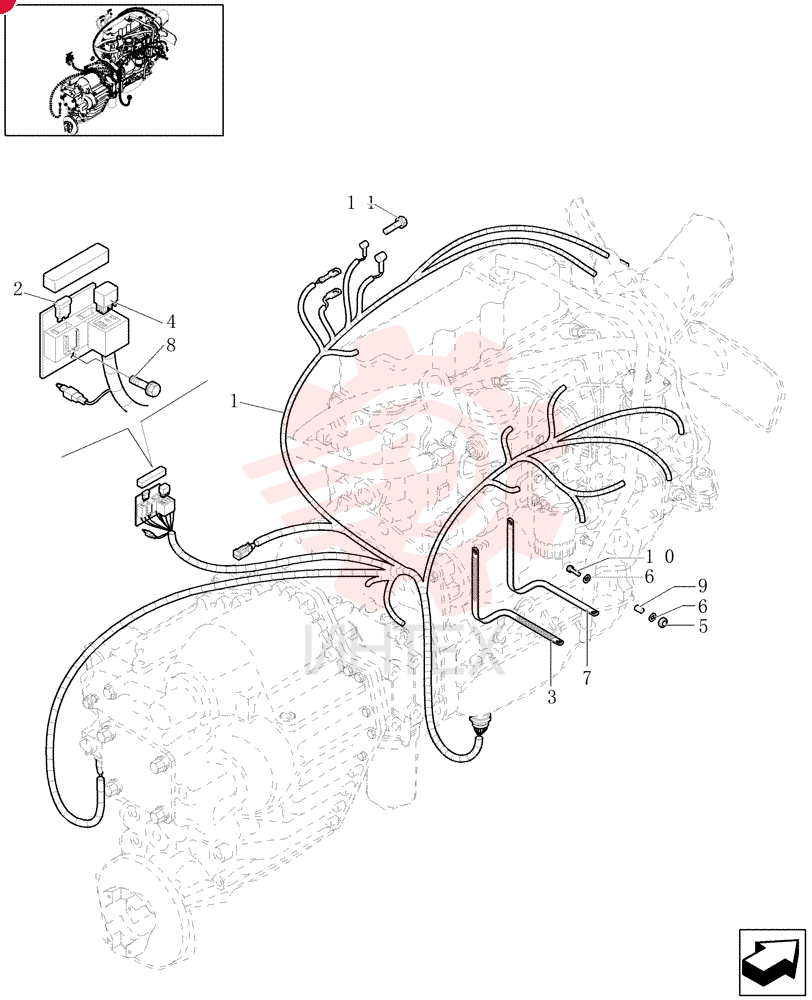

WIRE HARNESS 87406398

WIRE HARNESS 87406398

WIRE HARNESS 87406398

1 87406398

  • 87406398 - WIRE HARNESS

2 84183837

  • 84183837 - FUSE
  • 80A
  • Maxil
  • Natural

3 87407206

  • 87407206 - GROUND STRAP

4 85805162

  • 85805162 - RELAY
  • 12V
  • 70A

5 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

6 12638511

  • 12638511 - WASHER
  • M8 x 15 x 1.5

7 87410268

  • 87410268 - GROUND STRAP

8 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

9 87415208

  • 87415208 - SPACER

10 16044421

  • 16044421 - SCREW
  • Hex
  • M8 x 60mm
  • Cl 8.8

11 47049186

  • 47049186 - BOLT
  • M10 x 30mm
