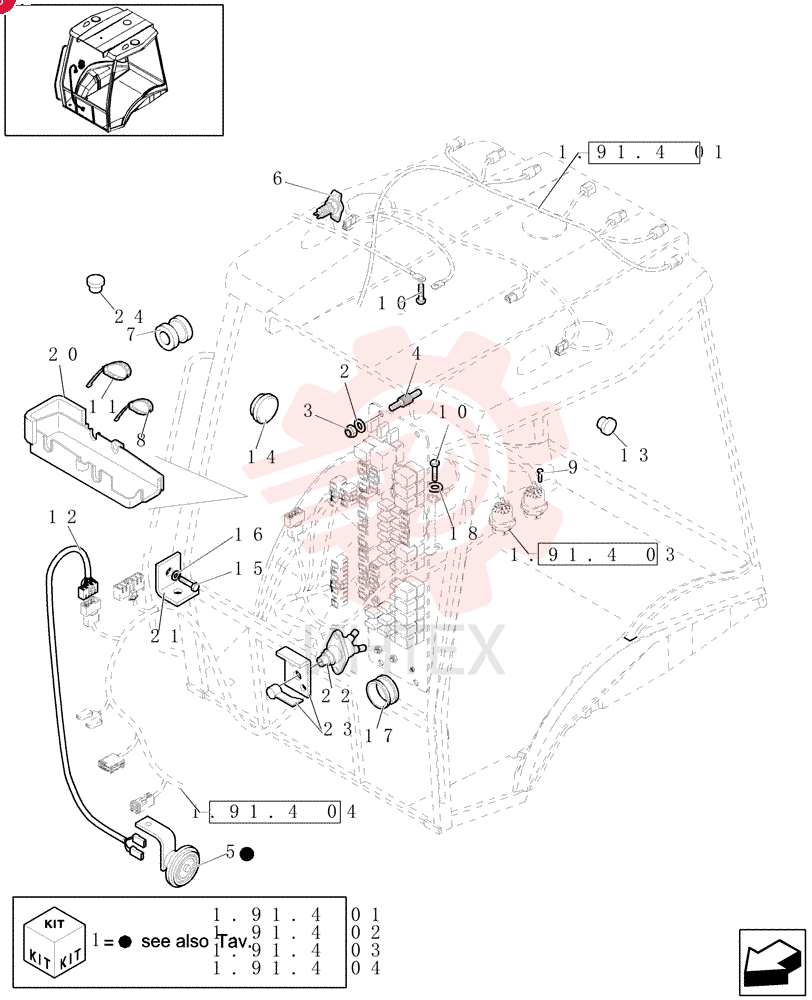

Схема (B110) - NA BACKHOE LOADER (1/06-) 87431460 (3)

Схема (B110) - NA BACKHOE LOADER (1/06-) 87431460 (3)

Схема (B110) - NA BACKHOE LOADER (1/06-) 87431460 (3)

1 87431460

  • 87431460 -

2 10615274

  • 10615274 - LOCK WASHER
  • Ext Tooth
  • M4

3 86625075

  • 86625075 - NUT
  • M4 x 0.7
  • Cl 8

4 85825129

  • 85825129 - ISOLATOR

5 87689317

  • 87689317 - HORN

6 87546419

  • 87546419 - SOCKET
  • 12/24V
  • 16A

7 10398980

  • 10398980 - GROMMET
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk

8 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

9 13272214

  • 13272214 - SCREW
  • Pozidriv Pan Hd
  • M4 x 16mm
  • Cl 5.8
  • Full Thd

10 16043121

  • 16043121 - SCREW
  • Hex
  • M8 x 1.25 x 14mm
  • Cl 8.8
  • Full Thd

11 85805383

  • 85805383 - CABLE TIE

12 87410259

  • 87410259 - WIRE HARNESS

13 85802310

  • 85802310 - PLUG
  • Black

14 85808460

  • 85808460 - PLUG

15 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd

16 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

17 10398680

  • 10398680 - GROMMET
  • 25mm ID x 33mm GRV ø x 42mm OD x 15mm Thk

18 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

19 85825136

  • 85825136 - COVER

20 85821326

  • 85821326 - SUPPORT

21 87409316

  • 87409316 - SWITCH

22 87409315

  • 87409315 - KIT

23 85825254

  • 85825254 - PLUG
