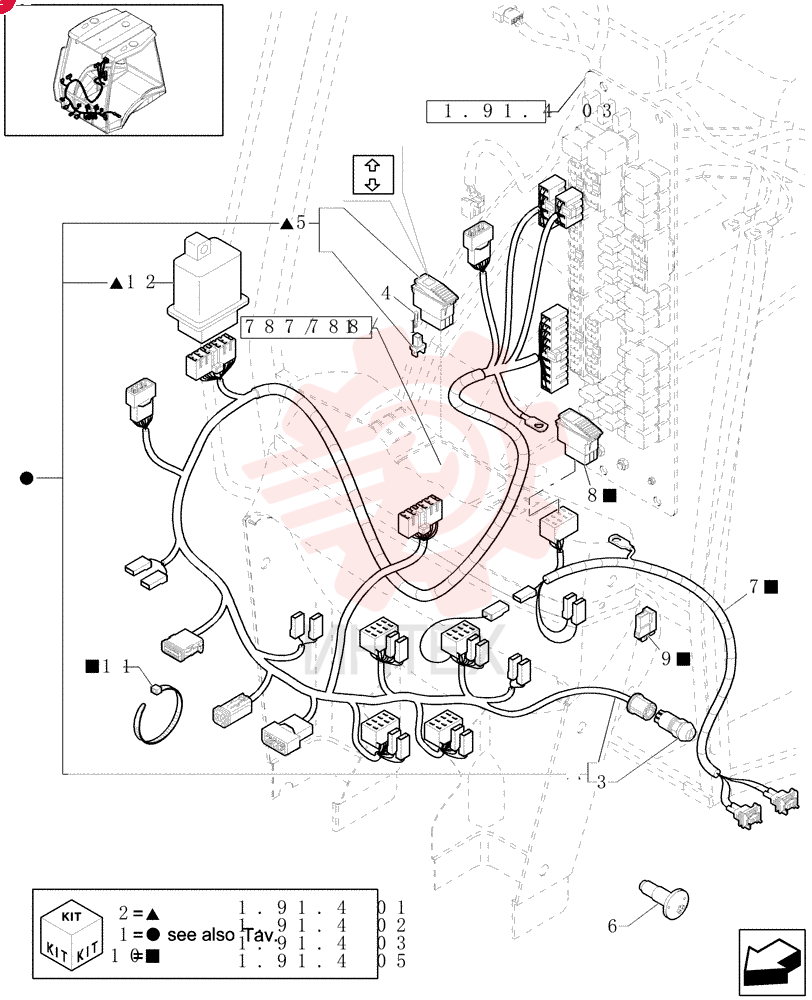

Схема (B110) - NA BACKHOE LOADER (1/06-) 87431460 (2)

Схема (B110) - NA BACKHOE LOADER (1/06-) 87431460 (2)

Схема (B110) - NA BACKHOE LOADER (1/06-) 87431460 (2)

1 87431460

  • 87431460 -

2 85819586

  • 85819586 - WIRE HARNESS

3 85806133

  • 85806133 - FLASHER SWITCH

4 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W

5 85819144

  • 85819144 - SWITCH ASSY

6 87433891

  • 87433891 - ADAPTER
  • 3A

7 87371907

  • 87371907 - HARNESS

8 87371905

  • 87371905 - SWITCH

9 87371906

  • 87371906 - DIODE

10 87653101

  • 87653101 - KIT

11 14560087

  • 14560087 - CABLE TIE
  • 103mm
  • Black

12 85806132

  • 85806132 - FLASHER UNIT
