(B110) - NA BACKHOE LOADER (1/06-)
/

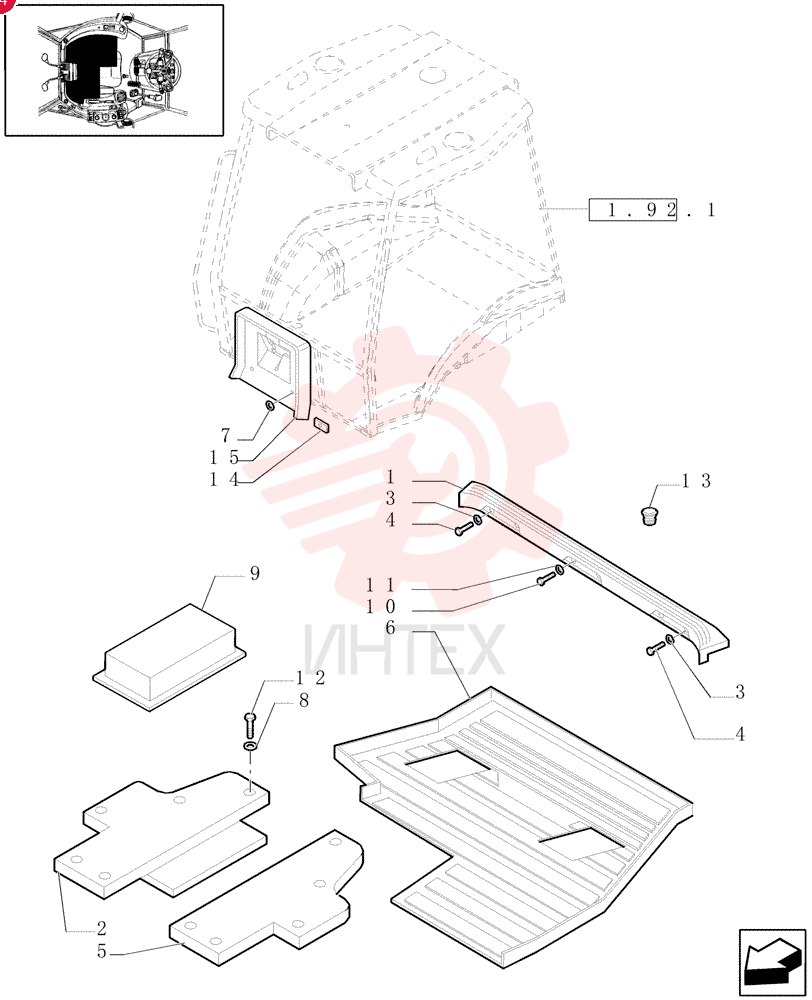

PANEL 87410385

PANEL 87410385

PANEL 87410385

1 87410385

  • 87410385 - PANEL

2 87426550

  • 87426550 - TOP COVER

3 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

4 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

5 87426546

  • 87426546 - TOP COVER

6 87410108

  • 87410108 - MAT

7 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

8 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

9 4999021

  • 4999021 - GASKET

10 12640621

  • 12640621 - WASHER
  • 6.15mm ID x 25mm OD x 2mm Thk

11 10902524

  • 10902524 - SCREW
  • Hex
  • M6 x 22mm
  • Cl 8.8

12 82001909

  • 82001909 - PLUG
  • 33mm OD

13 85812080

  • 85812080 - NUT

14 87408893

  • 87408893 - PANEL

15 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd
