(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

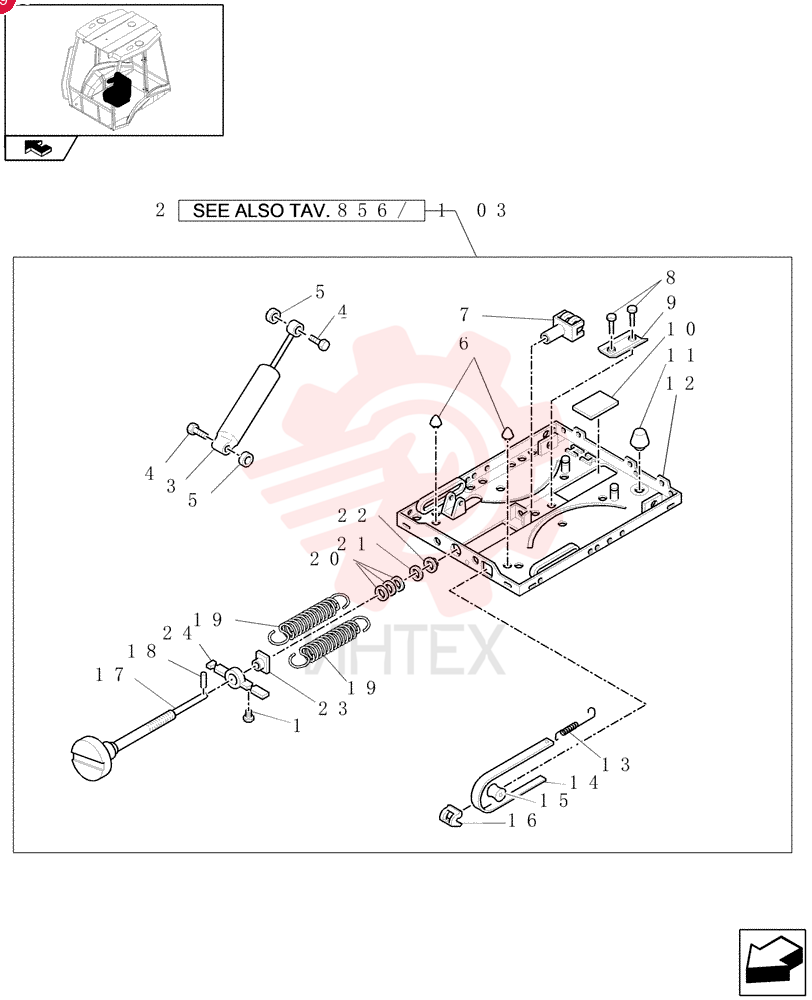

RETAINER 82035033 (2)

RETAINER 82035033 (2)

RETAINER 82035033 (2)

1 82035033

  • 82035033 - RETAINER

2 85817556

  • 85817556 - SUSPENSION

3 85817431

  • 85817431 - SHOCK ABSORBER

4 82035040

  • 82035040 - BOLT
  • M8 x 22mm

5 82035128

  • 82035128 - WASHER
  • 5mm ID

6 85817440

  • 85817440 - RUBBER BUMPER

7 82035043

  • 82035043 - FORK

8 82035037

  • 82035037 - RIVET
  • 4mm OD x 10mm L

9 82035054

  • 82035054 - PROFILE

10 82035032

  • 82035032 - PLATE

11 85817441

  • 85817441 - RUBBER BUMPER

12 85817436

  • 85817436 - PLATE

13 82035039

  • 82035039 - SPRING

14 85817443

  • 85817443 - INDICATOR

15 82035029

  • 82035029 - ROLLER

16 82035025

  • 82035025 - GUIDE

17 85817451

  • 85817451 - ADJUSTMENT SCREW

18 85817433

  • 85817433 - DOWEL
  • 3mm OD x 16mm L

19 85817434

  • 85817434 - SPRING

20 82035035

  • 82035035 - SET OF WASHERS

21 82035028

  • 82035028 - WASHER

22 85817435

  • 85817435 - BUSHING

23 82035034

  • 82035034 - FLANGE NUT

24 82035027

  • 82035027 - BRACKET
