(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

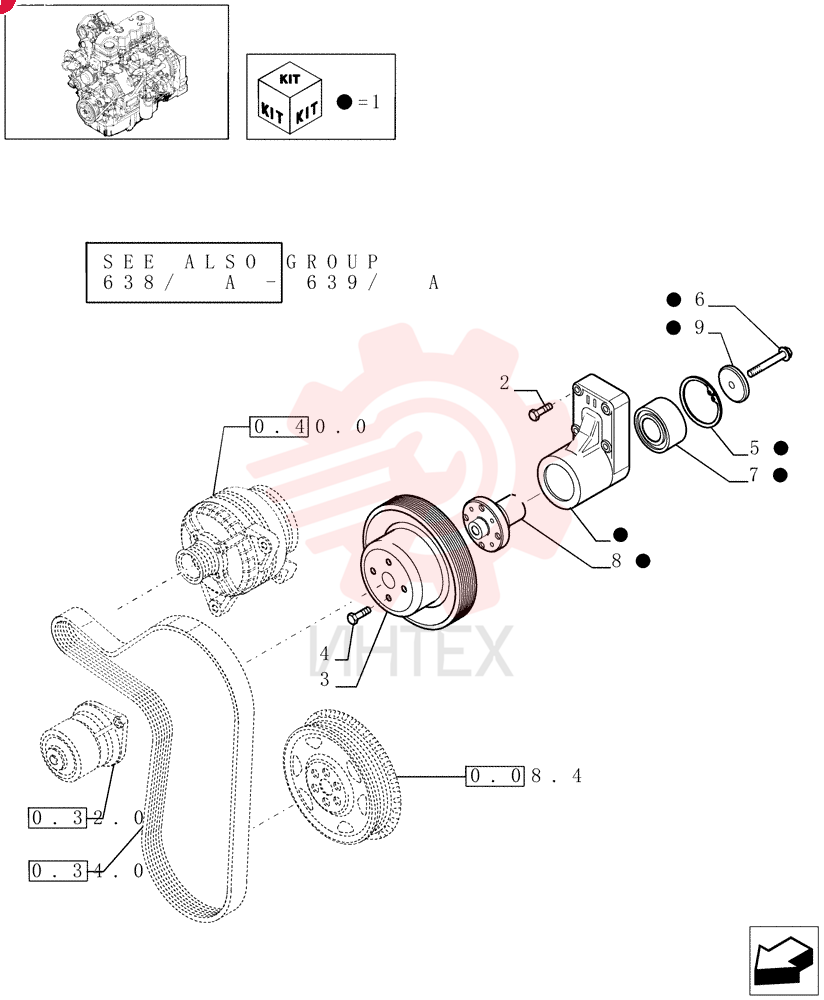

SUPPORT 2852170

SUPPORT 2852170

SUPPORT 2852170

1 2852170

  • 2852170 - SUPPORT

2 4899053

  • 4899053 - SCREW
  • Hex Flg
  • M8 x 45

3 4890343

  • 4890343 - PULLEY
  • 130.25mm OD

4 4895291

  • 4895291 - SCREW
  • Hex Flg
  • M10 x 1.5 x 20

5 2852171

  • 2852171 - SNAP RING

6 2852172

  • 2852172 - BOLT
  • Flng
  • M10 x 1.5 x 70mm

7 4892732

  • 4892732 - BALL BEARING
  • 34mm ID x 64mm OD x 37mm W

8 4892426

  • 4892426 - HUB

9 4890732

  • 4890732 - RETAINER
  • 11.50mm ID x 52mm OD x 7mm
