New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

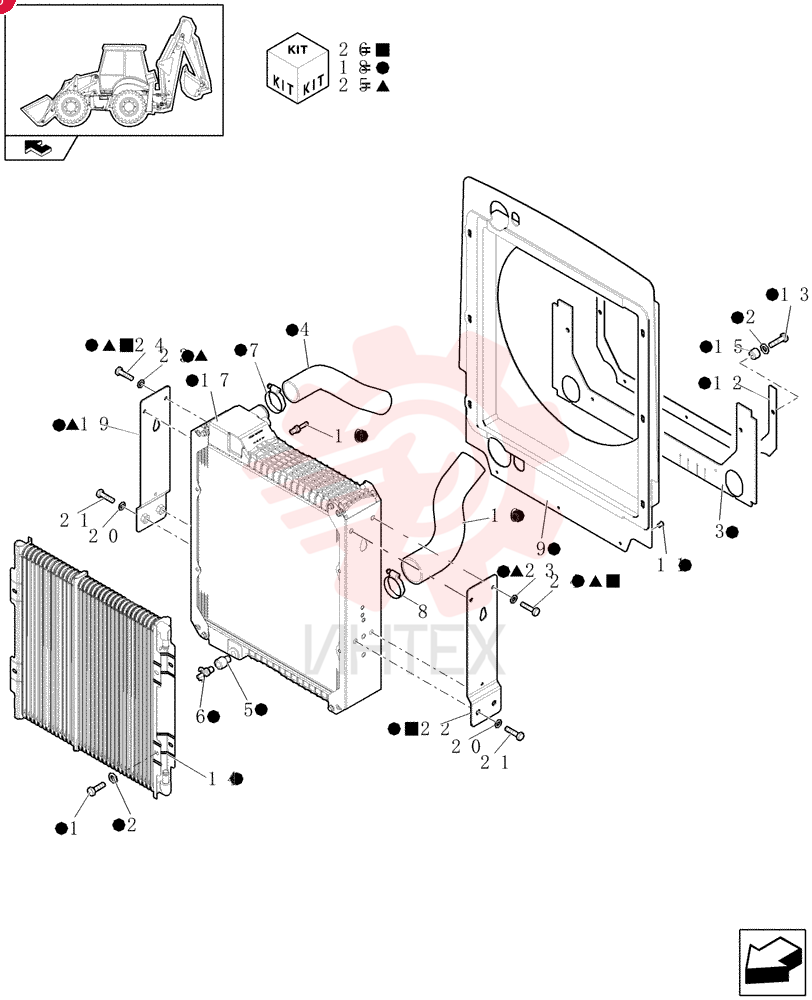

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd 16043021 (1)

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd 16043021 (1)

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd 16043021 (1)

1 16043021

  • 16043021 - SCREW
  • Hex
  • M8 x 1.25 x 12mm
  • Cl 8.8
  • Full Thd

2 47048962

  • 47048962 - WASHER
  • 9mm ID x 16mm OD
  • Carbon Steel

3 87595243

  • 87595243 - SEAL

4 87528978

  • 87528978 - RADIATOR HOSE
  • 45.00 mm ID x 76.50 mm
  • SAE J20
  • SAE 20 R4 Class C

5 47049581

  • 47049581 - SEALANT

6 47050674

  • 47050674 - DRAINCOCK/TAP SUPPLY

7 47050733

  • 47050733 - HOSE CLAMP
  • 39.62mm - 63.5mm

8 47050734

  • 47050734 - HOSE CLAMP

9 87410916

  • 87410916 - SHROUD

10 87016893

  • 87016893 - FITTING
  • 1/4" Hose X 1/4" NPTF Beaded

11 85825170

  • 85825170 - BUTTON

12 86983070

  • 86983070 - SEAL RETAINER

13 87026277

  • 87026277 - BOLT
  • Hex
  • M8 x 30mm
  • Cl 10.9
  • Full Thd

14 87410099

  • 87410099 - OIL COOLER

15 85825169

  • 85825169 - SPACER
  • 9.8mm ID x 16mm OD x 11mm L

16 87407272

  • 87407272 - HOSE
  • 57.00 mm ID x 217.70 mm
  • SAE J20
  • SAE J20R4 CLASS C

17 87310155

  • 87310155 - RADIATOR

18 87544110

  • 87544110 - RADIATOR

19 85828168

  • 85828168 - BRACKET

20 12646901

  • 12646901 - WASHER
  • 12.2mm ID x 8mm OD x 3mm Thk

21 11112421

  • 11112421 - SCREW
  • Hex
  • M12 x 30mm
  • Cl 8.8

22 87302922

  • 87302922 - BRACKET

23 87306886

  • 87306886 - WASHER

24 87306887

  • 87306887 - SET SCREW
  • M10 x 16mm

25 87345950

  • 87345950 - KIT

26 87345951

  • 87345951 - KIT
