New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

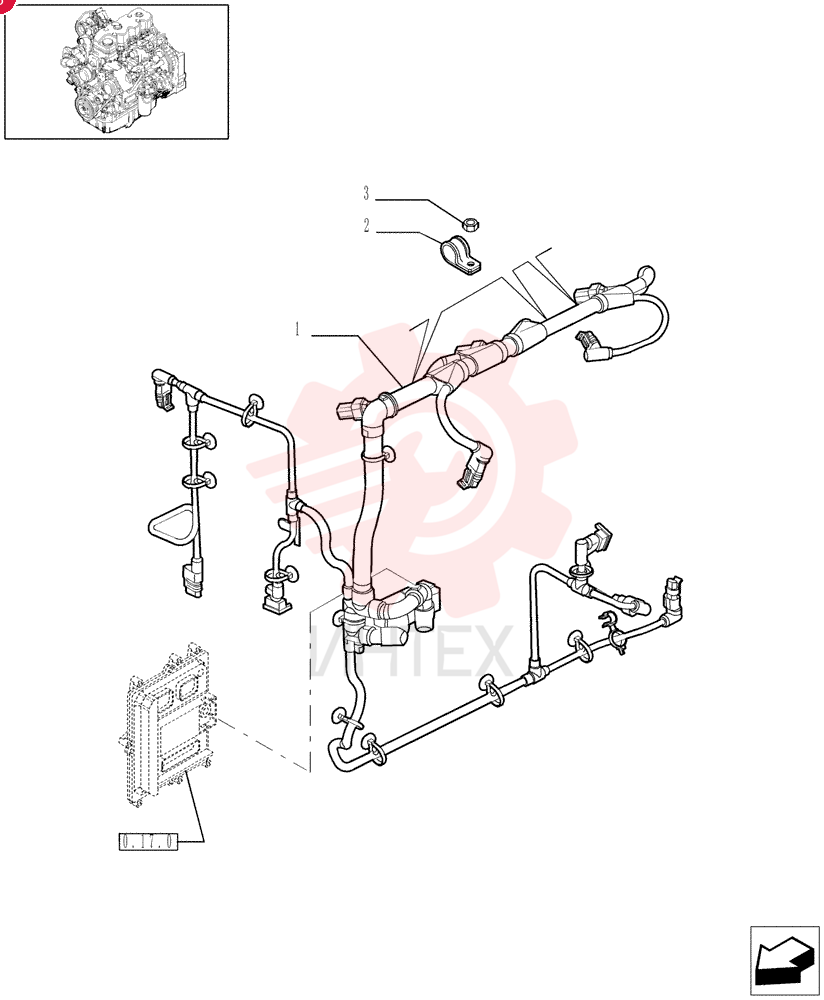

WIRE HARNESS 2855886

WIRE HARNESS 2855886

WIRE HARNESS 2855886

1 2855886

  • 2855886 - WIRE HARNESS

2 2852501

  • 2852501 - RETAINER COLLAR

3 17315190

  • 17315190 - CLAMP

4 2852484

  • 2852484 - FLANGE NUT
  • Hex
  • M6 x 1

5 82033028

  • 82033028 - CABLE TIE
  • 170mm L

6 87567355

  • 87567355 - CLAMP
  • 202mm L x 4.6mm W x 1.2mm Thk

7 87567356

  • 87567356 - CLAMP
  • 200mm L x 4.6mm W x 1.2mm Thk
