New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

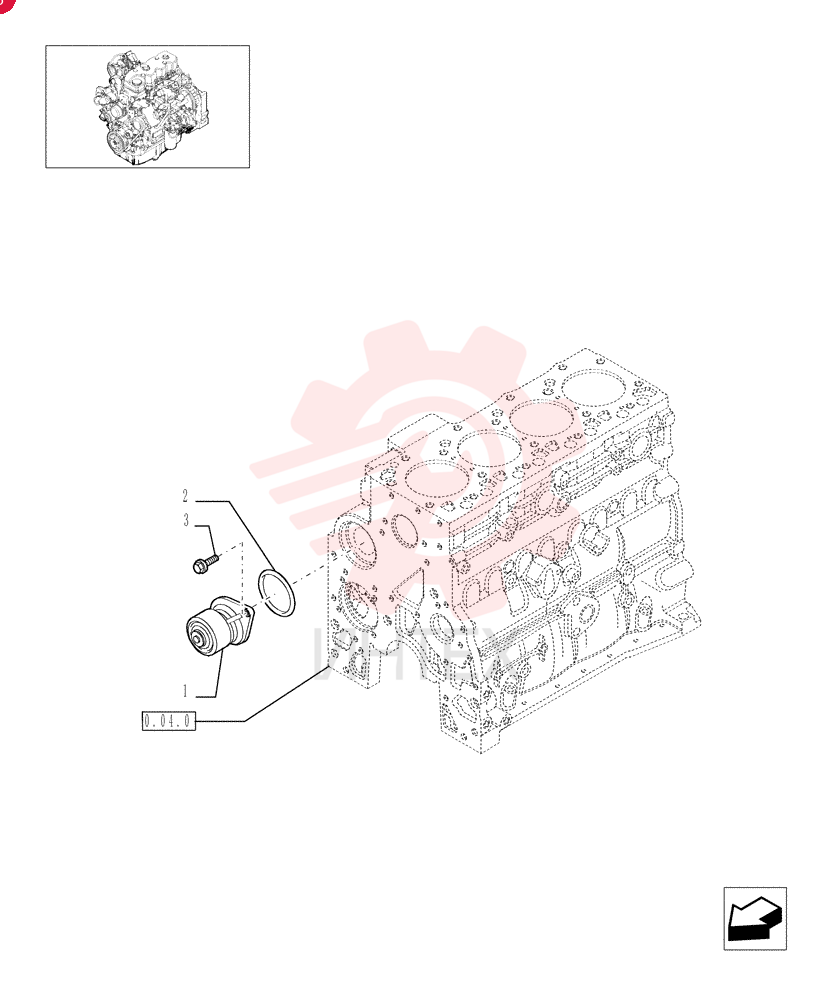

WATER PUMP 4891252

WATER PUMP 4891252

WATER PUMP 4891252

1 4891252

  • 4891252 - WATER PUMP

2 2852114R

  • 2852114R - REMAN-WATER PUMP

3 2852114C

  • 2852114C - CORE-WATER PUMP

4 2852114

  • 2852114 - WATER PUMP

5 2852114R

  • 2852114R - REMAN-WATER PUMP

6 2852114C

  • 2852114C - CORE-WATER PUMP

7 2852047

  • 2852047 - SEALING RING
  • Square
  • 5.16mm Thk x 88.27mm ID

8 4899079

  • 4899079 - SCREW
  • Hex Flg
  • M8 x 1.25 x 25
