(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

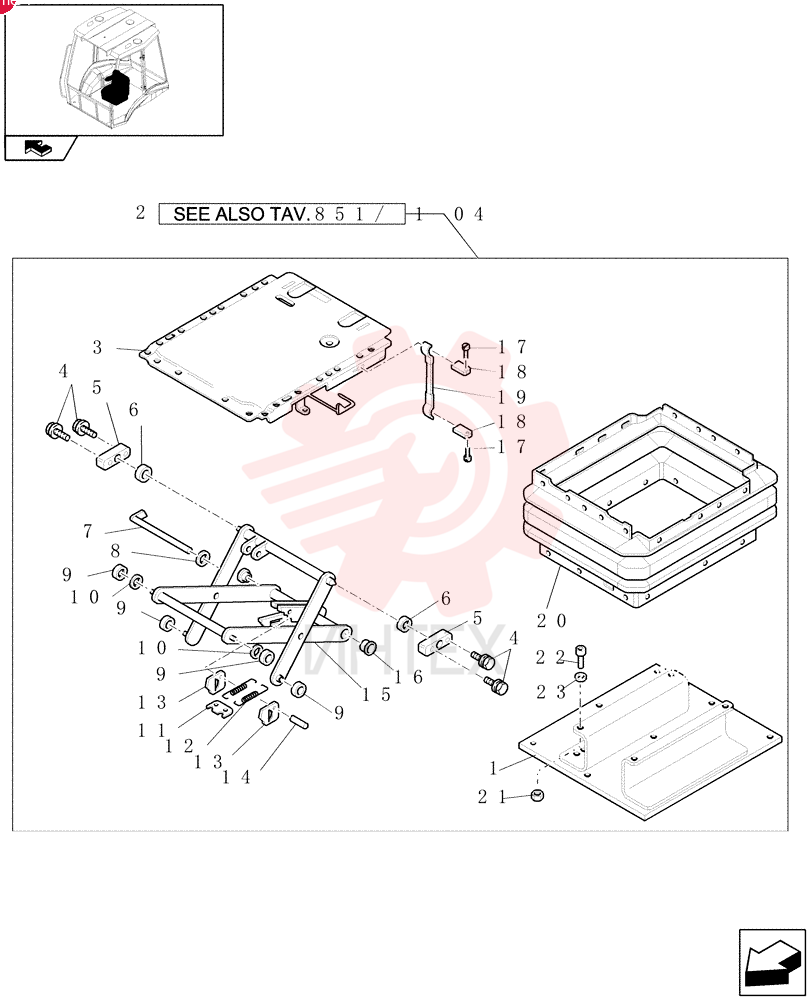

RETAINING PLATE 85817427

RETAINING PLATE 85817427

RETAINING PLATE 85817427

1 85817427

  • 85817427 - RETAINING PLATE

2 85817426

  • 85817426 - SUSPENSION

3 85817450

  • 85817450 - PLATE

4 85817444

  • 85817444 - SCREW
  • M6 x 16mm

5 82035094

  • 82035094 - BEARING

6 85817445

  • 85817445 - BUSHING

7 85817429

  • 85817429 - PIN

8 82035127

  • 82035127 - WASHER
  • M9

9 82035031

  • 82035031 - ROLLER

10 85817442

  • 85817442 - BUSHING

11 82035030

  • 82035030 - PLATE

12 85817430

  • 85817430 - SPRING

13 9958792

  • 9958792 - PLATE

14 82035036

  • 82035036 - BOLT

15 85817446

  • 85817446 - SUSPENSION

16 9960755

  • 9960755 - BUSHING

17 85817448

  • 85817448 - RIVET
  • 5mm OD x 10mm L

18 85817449

  • 85817449 - PLATE

19 85817447

  • 85817447 - HANDLE

20 85817428

  • 85817428 - BELLOWS

21 85817458

  • 85817458 - NUT

22 82034893

  • 82034893 - SCREW
  • M8 x 1.25 x 1.25mm

23 82034881

  • 82034881 - WASHER
  • 8.4mm ID
