(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

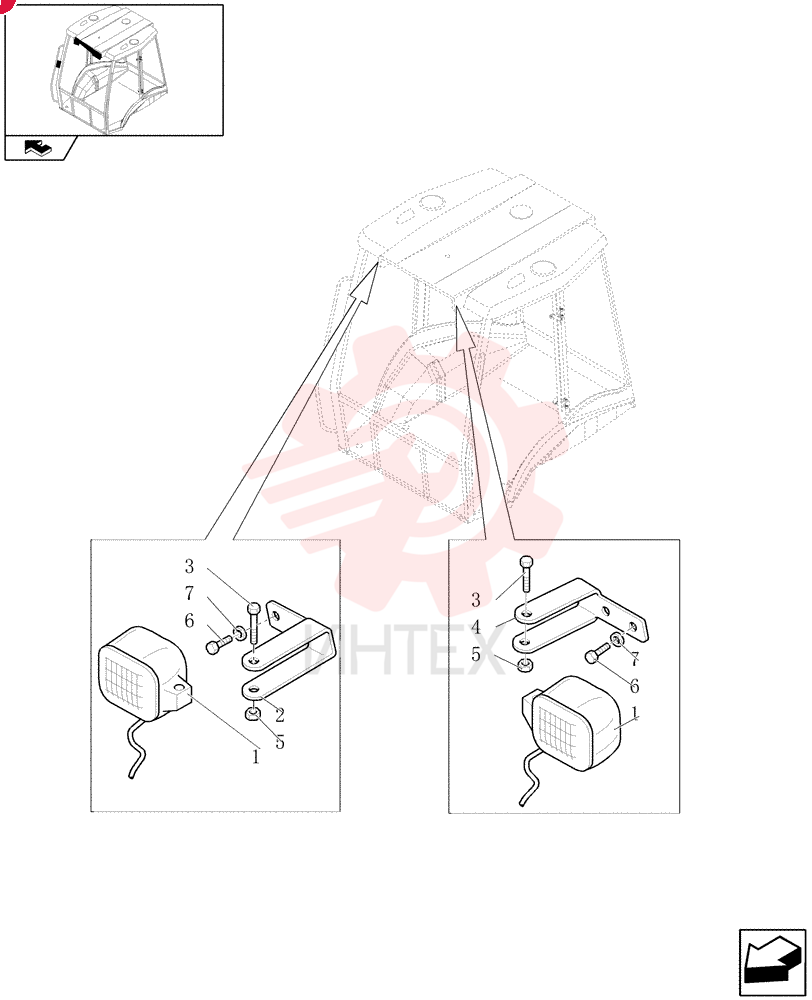

WORK LAMP,Halogen, 12V, 55W, Clear 85819200 (2)

WORK LAMP,Halogen, 12V, 55W, Clear 85819200 (2)

WORK LAMP,Halogen, 12V, 55W, Clear 85819200 (2)

1 85819200

  • 85819200 - WORK LAMP
  • Halogen
  • 12V
  • 55W
  • Clear

2 85819188

  • 85819188 - BRACKET

3 16044324

  • 16044324 - SCREW
  • Hex
  • M8 x 1.25 x 55mm
  • Cl 8.8

4 85819189

  • 85819189 - BRACKET

5 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

6 10902124

  • 10902124 - SCREW
  • Hex
  • M6 x 14mm
  • Cl 8.8

7 11197774

  • 11197774 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk
