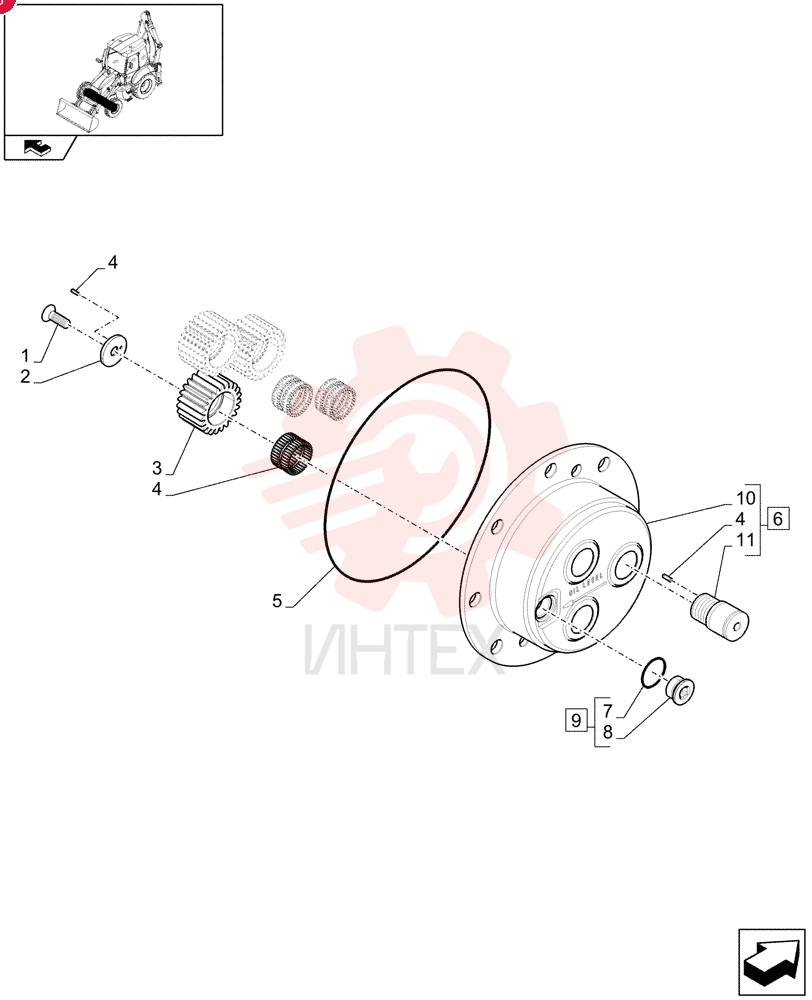

(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/
SCREW,FLAT, M12 x 1.75 x 35mm, Cl 12.9

SCREW,FLAT, M12 x 1.75 x 35mm, Cl 12.9

SCREW,FLAT, M12 x 1.75 x 35mm, Cl 12.9

1 84273746

  • 84273746 - SCREW
  • FLAT
  • M12 x 1.75 x 35mm
  • Cl 12.9

2 84271320

  • 84271320 - RETAINER
  • 13mm ID
  • 43.8mm OD

3 84183899

  • 84183899 - PLANETARY GEAR
  • 23T

4 84380206

  • 84380206 - NEEDLE ROLLER
  • 4mm OD x 12mm L

5 14468780

  • 14468780 - O-RING
  • 0.139" Thk x 8.73" ID
  • -269
  • Cl 5
  • 75 Duro

6 84249603

  • 84249603 - CARRIER

7 9626929

  • 9626929 - O-RING
  • 0.116" Thk x 1.048" ID
  • -914
  • Cl 6
  • 90 Duro

8 84271945

  • 84271945 - PLUG
  • M30 x 2

9 84272055

  • 84272055 - PLUG
  • M30 x 2

10 NSS

  • NSS - NOT SOLD SEPARAT

11 84299881

  • 84299881 - PIN
  • 39.4mmOD x 73mm L
