(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

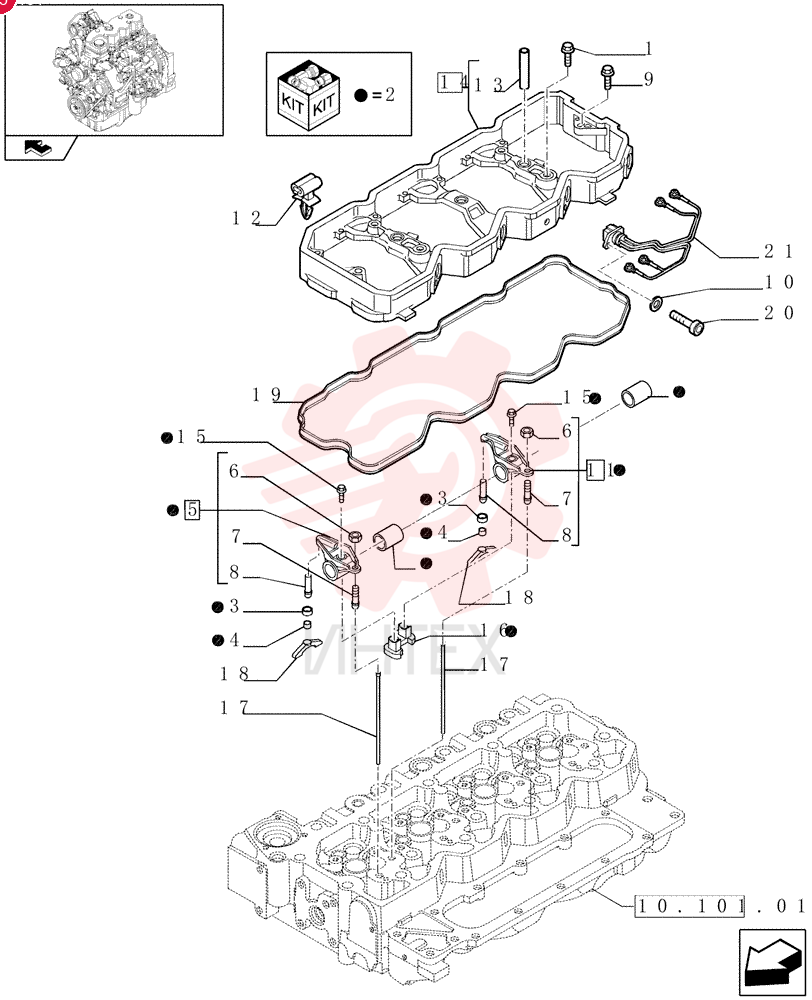

SCREW,M8 x 1.25 x 70mm

SCREW,M8 x 1.25 x 70mm

SCREW,M8 x 1.25 x 70mm

1 4895432

  • 4895432 - SCREW
  • M8 x 1.25 x 70mm

2 2856458

  • 2856458 - ROCKER ARM

3 4897248

  • 4897248 - RETAINER

4 4897245

  • 4897245 - SOCKET

5 4895068

  • 4895068 - ROCKER ARM

6 4895198

  • 4895198 - NUT
  • 3/8"-24
  • Heavy

7 2830222

  • 2830222 - ADJUSTMENT SCREW
  • Hdls Hex Skt
  • 3/8" - 24 x 23.85mm

8 4895065

  • 4895065 - SPACER

9 4899089

  • 4899089 - SCREW
  • Hex Flg
  • M8 x 1.25 x 50

10 2852776

  • 2852776 - WASHER
  • 6mm ID x 11mm OD

11 4895067

  • 4895067 - ROCKER ARM

12 2852428

  • 2852428 - WIRE CLAMP
  • 6mm ID

13 4899245

  • 4899245 - SLEEVE
  • 9mm ID x 13.9mm OD x 55.25mm L

14 4899256

  • 4899256 - HOUSING

15 2856460

  • 2856460 - BOLT
  • Flng
  • M8 x 1.25 x 55.5mm
  • Cl 10.9

16 4893487

  • 4893487 - LEVER

17 4895031

  • 4895031 - PUSH ROD

18 2854530

  • 2854530 - BRIDGE

19 2853535

  • 2853535 - GASKET
  • 10.35mm Thk

20 2852602

  • 2852602 - HEX SOC SCREW
  • M6 x 16mm

21 4896052

  • 4896052 - WIRE HARNESS
