(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

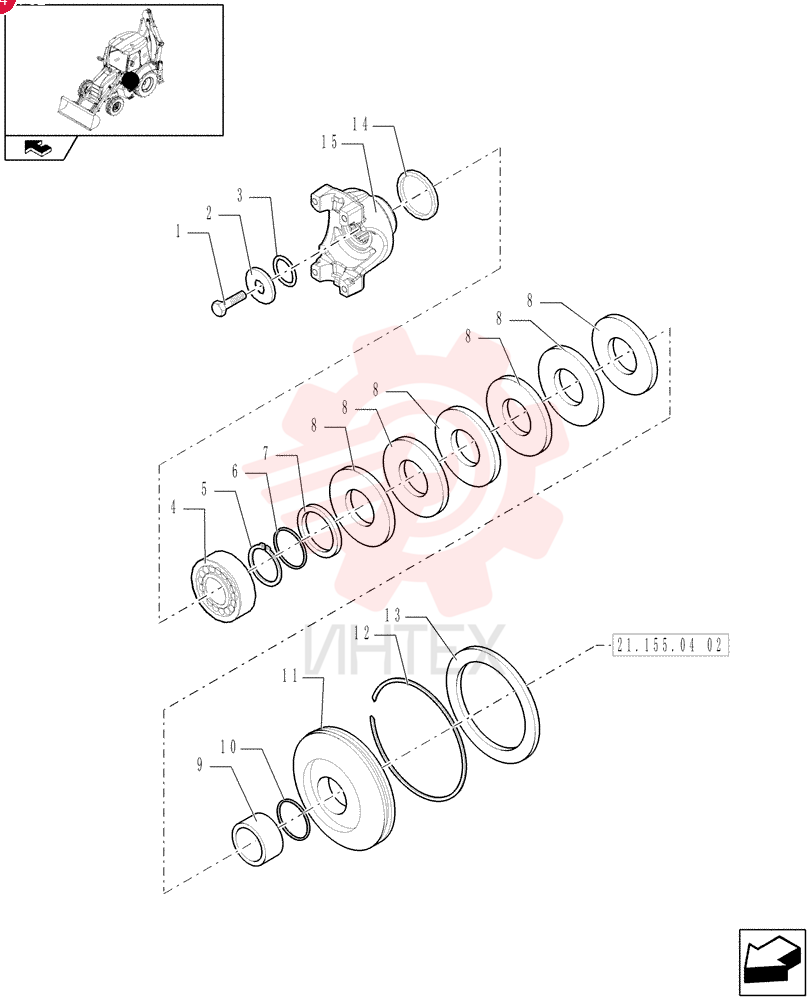

SCREW,M12 x 1.25 x 25mm

SCREW,M12 x 1.25 x 25mm

SCREW,M12 x 1.25 x 25mm

1 P3533055

  • P3533055 - SCREW
  • M12 x 1.25 x 25mm

2 181165A1

  • 181165A1 - WASHER
  • 12.5mm ID x 52mm OD x 5mm Thk

3 100748A1

  • 100748A1 - O-RING
  • 1.421" ID x 1.699" OD x 0.139"

4 700524R91

  • 700524R91 - BALL BEARING

5 87306933

  • 87306933 - SNAP RING
  • M45

6 87705529

  • 87705529 - SHIM
  • 0.1mm Thk

7 87705530

  • 87705530 - SHIM
  • 0.3mm Thk

8 87705531

  • 87705531 - SHIM
  • 0.5mm Thk

9 87705543

  • 87705543 - THRUST WASHER

10 87705544

  • 87705544 - BELLEVILLE WASHER

11 87705545

  • 87705545 - SPACER

12 510120

  • 510120 - O-RING
  • 0.139" Thk x 1.734" ID
  • -224
  • Cl 5
  • 75 Duro

13 87705547

  • 87705547 - PISTON

14 87705548

  • 87705548 - O-RING

15 87705549

  • 87705549 - BRAKE PLATE

16 181123A1

  • 181123A1 - OIL SEAL
  • 60mm ID x 75mm OD x 8mm Thk

17 87705564

  • 87705564 - FLANGE
