(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

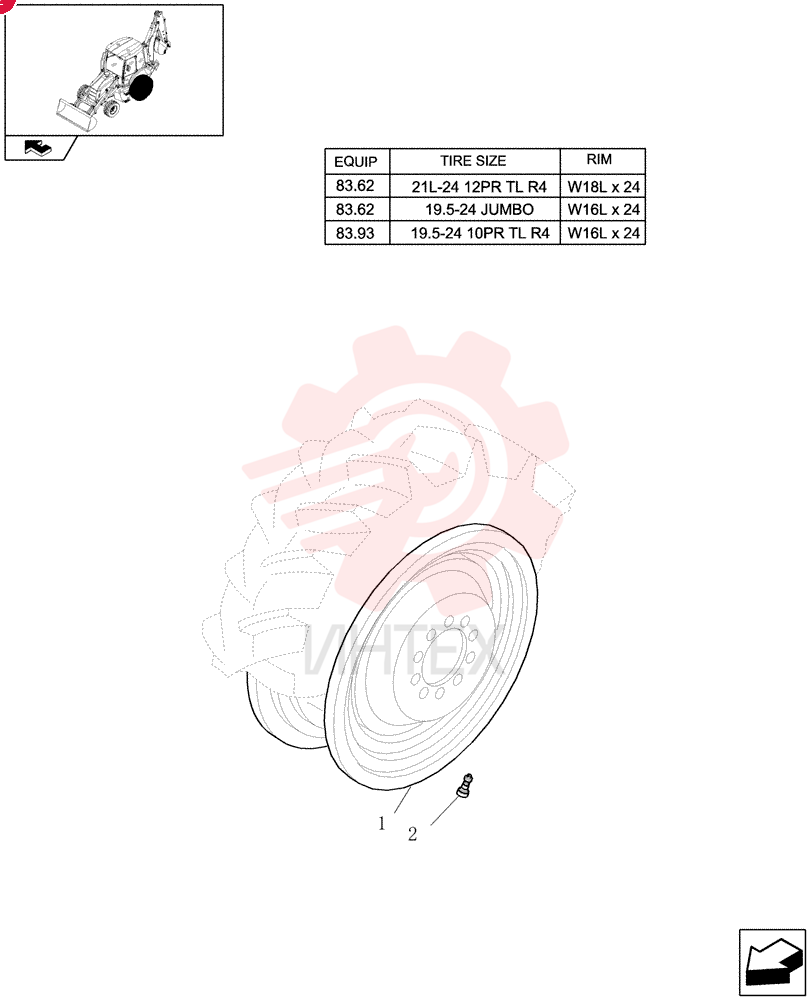

RIM,W18Lx24, 10 Bolts, NH Bright Yellow

RIM,W18Lx24, 10 Bolts, NH Bright Yellow

RIM,W18Lx24, 10 Bolts, NH Bright Yellow

1 84146990

  • 84146990 - RIM
  • W18Lx24
  • 10 Bolts
  • NH Bright Yellow

2 86981754

  • 86981754 - WHEEL
  • W16Lx24
  • 10 Bolts
  • NH Bright Yellow
