New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

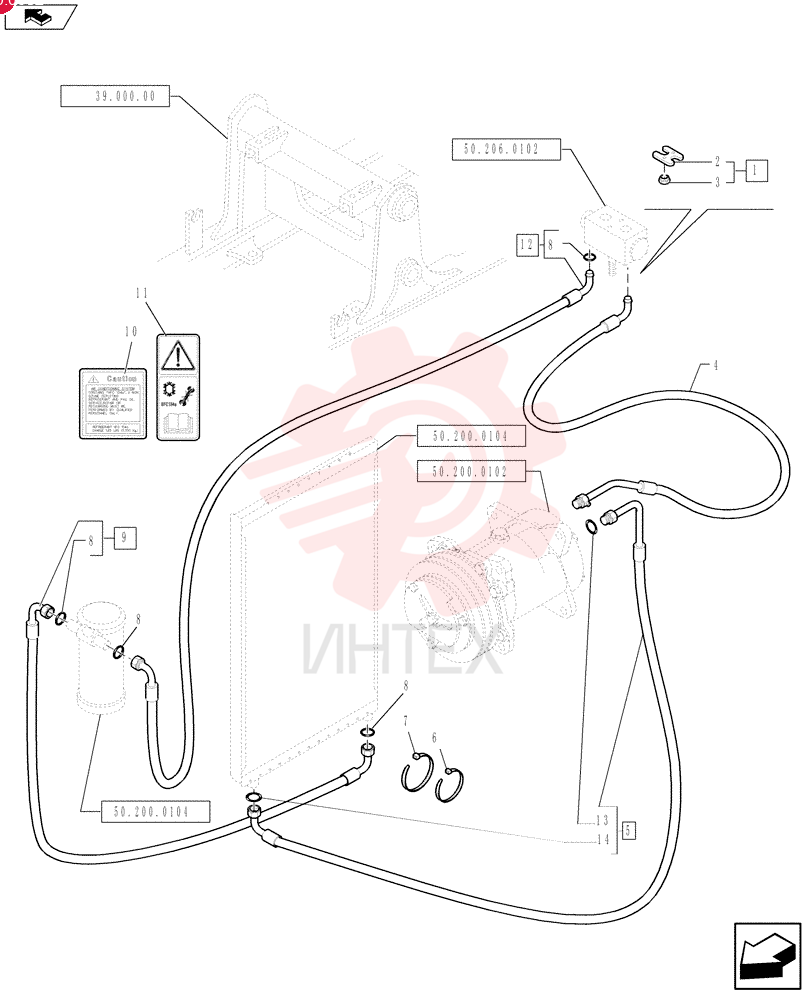

FLANGE 85821131 (1)

FLANGE 85821131 (1)

FLANGE 85821131 (1)

1 85821131

  • 85821131 - FLANGE

2 85805008

  • 85805008 - FLANGE

3 14040611

  • 14040611 - NUT
  • Hex W/Captive Spng
  • M6

4 87495914

  • 87495914 - A/C HOSE

5 87565311

  • 87565311 - FLEXIBLE HOSE

6 14560187

  • 14560187 - COLLAR
  • 199mm L

7 47048451

  • 47048451 - CABLE TIE
  • M8 x 384

8 85805013

  • 85805013 - O-RING

9 87315364

  • 87315364 - FLEXIBLE HOSE
  • 805mm L

10 87324469

  • 87324469 - DECAL

11 85804441

  • 85804441 - DECAL

12 87315368

  • 87315368 - A/C HOSE
  • 3200mm L

13 85817186

  • 85817186 - O-RING

14 85805006

  • 85805006 - O-RING
