New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

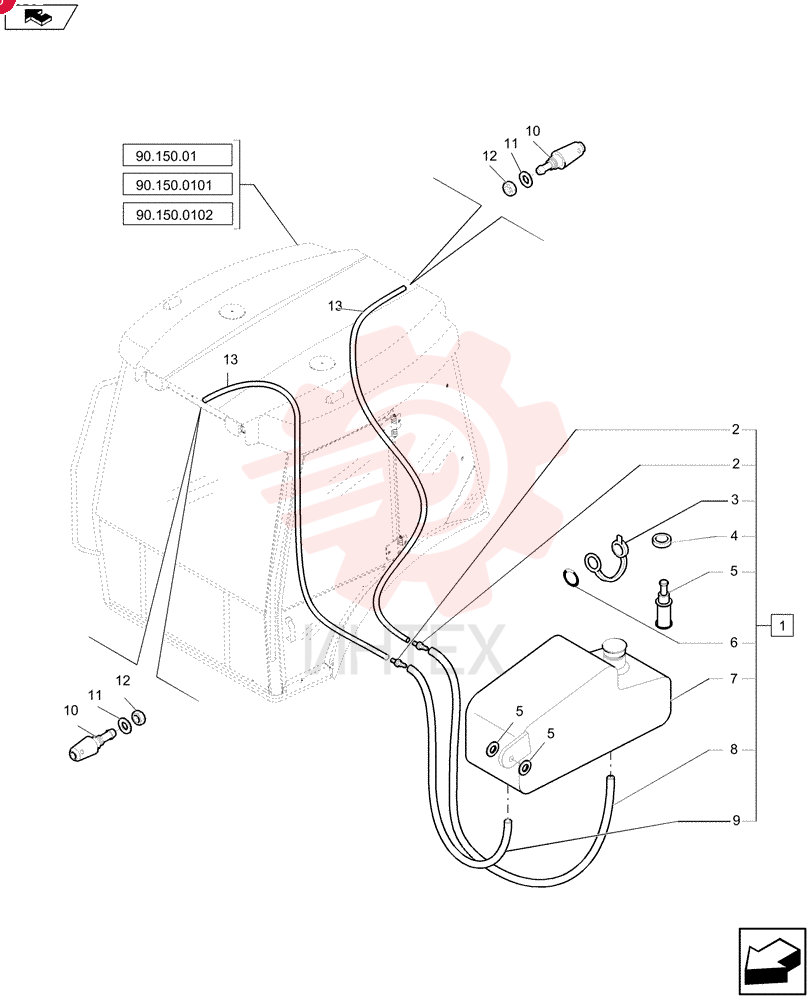

PAN 85821153

PAN 85821153

PAN 85821153

1 85821153

  • 85821153 - PAN

2 85821337

  • 85821337 - CHECK VALVE

3 5175736

  • 5175736 - CAP
  • 36.5mm ID

4 85821336

  • 85821336 - SEAL

5 85821333

  • 85821333 - PUMP

6 85820237

  • 85820237 - O-RING
  • 5.5mm Thk x 30mm ID
  • 70 Duro

7 85821334

  • 85821334 - RESERVOIR
  • WINDSHIEL

8 85824450

  • 85824450 - FLEXIBLE HOSE
  • 1080mm L

9 85821335

  • 85821335 - FLEXIBLE HOSE

10 85802398

  • 85802398 - NOZZLE

11 12646704

  • 12646704 - WASHER
  • 8.15mm ID x 20mm OD x 2mm Thk

12 16102414

  • 16102414 - NUT
  • Hex
  • M8 x 1

13 85821338

  • 85821338 - FLEXIBLE HOSE
  • 4.00 mm ID x 2200.00 mm
