(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

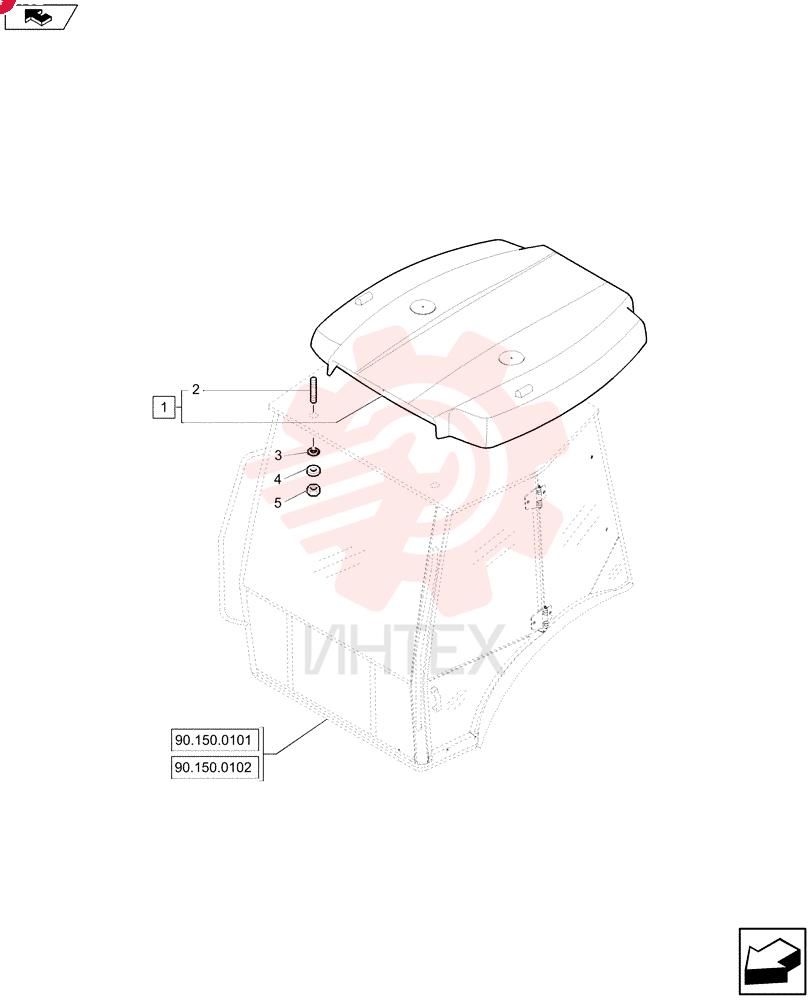

ROOF 87315646

ROOF 87315646

ROOF 87315646

1 87315646

  • 87315646 - ROOF

2 13517021

  • 13517021 - STUD
  • M8 x 12mm x 25mm
  • Cl 8.8

3 85801801

  • 85801801 - RUBBER SEAL
  • 6mm ID x 24mm OD x 2mm Thk

4 12647004

  • 12647004 - WASHER
  • 8.15mm ID x 25mm OD x 2.5mm Thk

5 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND
