New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

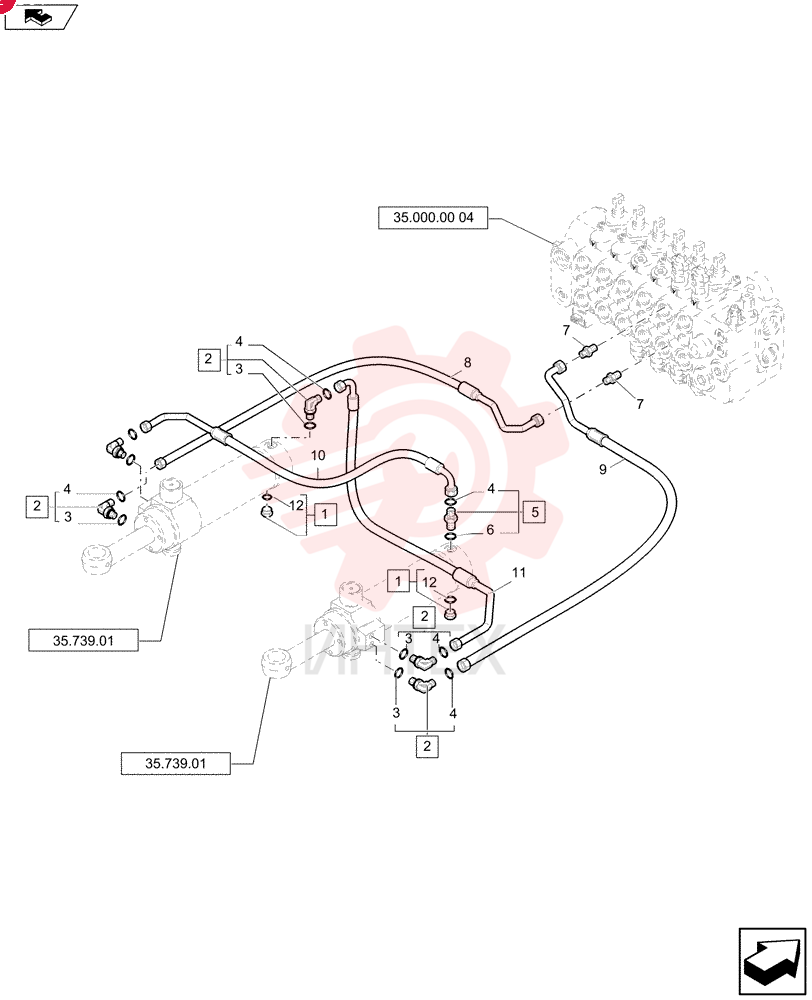

PLUG,Hex Soc, 3/4" - 16 ORB 86590562 (2)

PLUG,Hex Soc, 3/4" - 16 ORB 86590562 (2)

PLUG,Hex Soc, 3/4" - 16 ORB 86590562 (2)

1 86590562

  • 86590562 - PLUG
  • Hex Soc
  • 3/4" - 16 ORB

2 9992307

  • 9992307 - 90 ELBOW
  • 90 Degree
  • 13/16"-16 x 3/4"-16 Adj
  • ORFS

3 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

4 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

5 9992305

  • 9992305 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 3/4" - 16 ORB

6 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

7 87582906

  • 87582906 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 1-1/16" - 12 ORB

8 87755221

  • 87755221 - PIPE

9 87755220

  • 87755220 - PIPE

10 85820109

  • 85820109 - HYD TUBE

11 85819729

  • 85819729 - HYDRAULIC HOSE
  • 9.5mm ID x 385mm L

12 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro
