New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

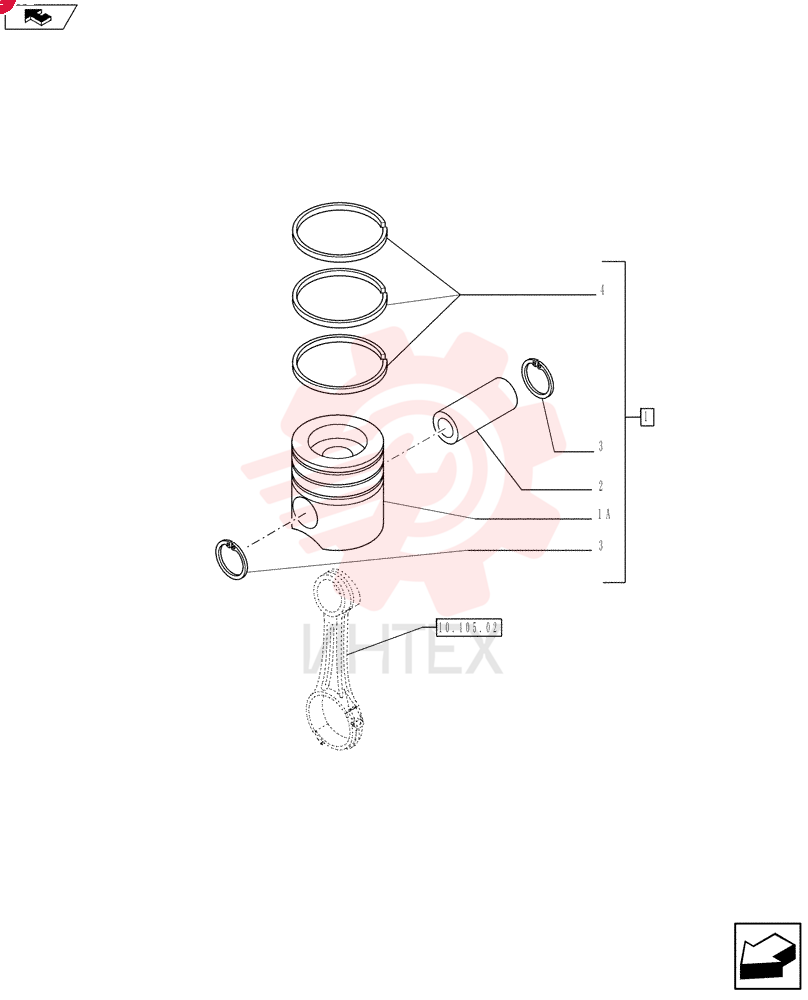

PISTON & RINGS KIT 87317256

PISTON & RINGS KIT 87317256

PISTON & RINGS KIT 87317256

1 87317256

  • 87317256 - PISTON & RINGS KIT

2 87317257

  • 87317257 - PISTON & RINGS KIT

3 NSS

  • NSS - NOT SOLD SEPARAT

4 4892712

  • 4892712 - PISTON PIN
  • 38mm OD x 82mm L

5 2854030

  • 2854030 - SNAP RING
  • M40.8 OD

6 87582179

  • 87582179 - PISTON RINGS KIT

7 87582180

  • 87582180 - PISTON RINGS KIT
