(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

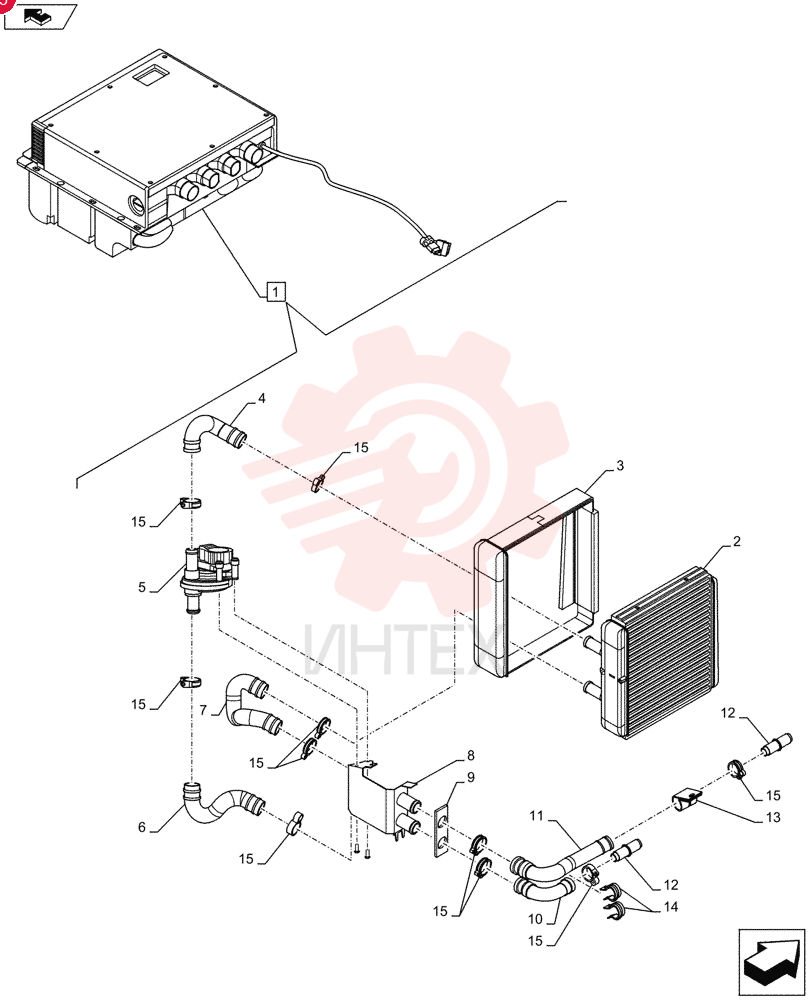

HEATER 47720024 (3)

HEATER 47720024 (3)

HEATER 47720024 (3)

1 47720024

  • 47720024 - HEATER

2 47916214

  • 47916214 - HEAT EXCHANGER

3 47916290

  • 47916290 - GASKET

4 47929882

  • 47929882 - AIR HOSE

5 47929907

  • 47929907 - VALVE

6 47929900

  • 47929900 - HEATER HOSE

7 47929899

  • 47929899 - HEATER HOSE

8 47929904

  • 47929904 - BRACKET

9 47929906

  • 47929906 - GASKET

10 47929903

  • 47929903 - PIPE

11 47929901

  • 47929901 - PIPE

12 47916289

  • 47916289 - JOINT

13 47929908

  • 47929908 - CLAMP

14 47929929

  • 47929929 - HOSE CLIP

15 NSS

  • NSS - NOT SOLD SEPARAT
