New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

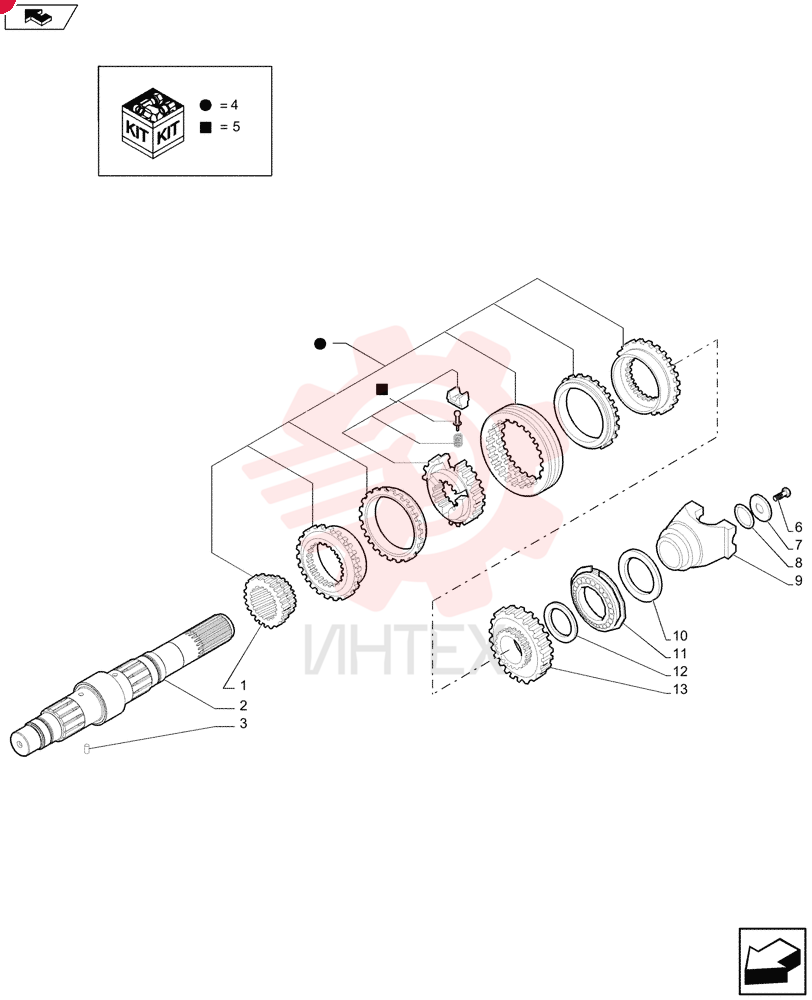

GEAR,23T 358282A1 (1)

GEAR,23T 358282A1 (1)

GEAR,23T 358282A1 (1)

1 358282A1

  • 358282A1 - GEAR
  • 23T

2 87701775

  • 87701775 - SHAFT

3 181108A1

  • 181108A1 - SPLIT PIN
  • 3mm OD x 8mm L

4 87429974

  • 87429974 - SYNCHRONIZER

5 84336848

  • 84336848 - SERVICE KIT

6 P3533055

  • P3533055 - SCREW
  • M12 x 1.25 x 25mm

7 181165A1

  • 181165A1 - WASHER
  • 12.5mm ID x 52mm OD x 5mm Thk

8 181144A1

  • 181144A1 - O-RING
  • 39.6mm ID x 3.53mm Width

9 233284A1

  • 233284A1 - YOKE

10 181123A1

  • 181123A1 - OIL SEAL
  • 60mm ID x 75mm OD x 8mm Thk

11 181130A1

  • 181130A1 - BEARING
  • BALL
  • 45 mm ID x 106.5 mm OD x 25 mm

12 358639A1

  • 358639A1 - WASHER

13 358283A1

  • 358283A1 - DRIVEN GEAR
  • 33T
