New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

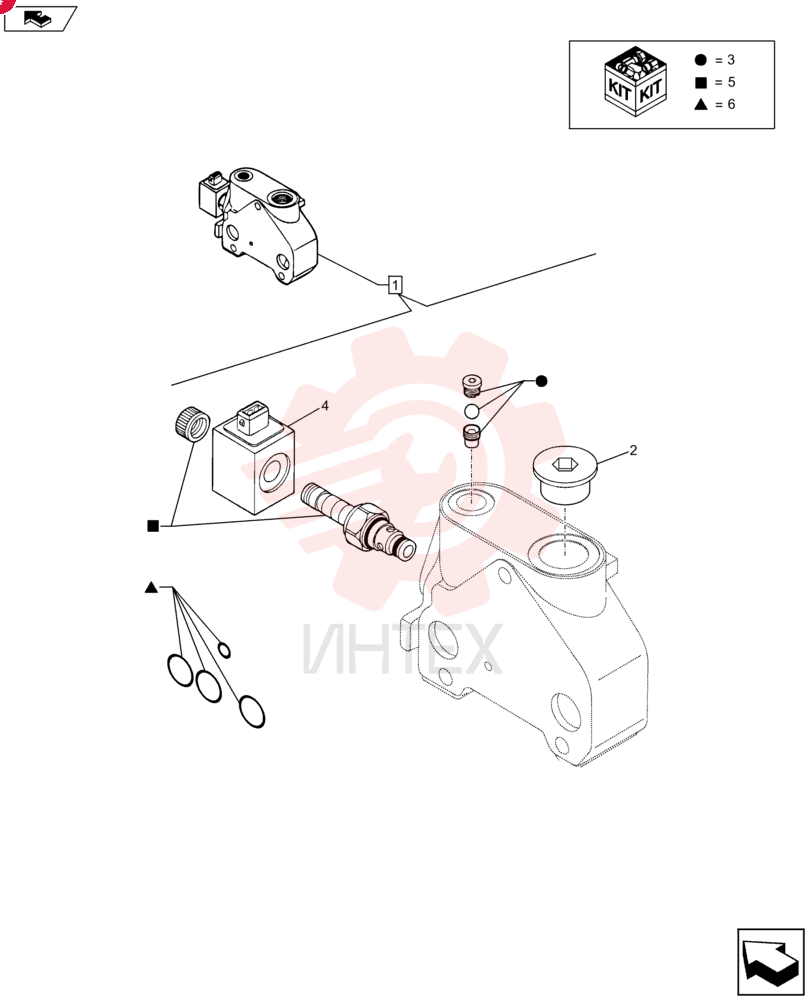

OUTLET 47378488

OUTLET 47378488

OUTLET 47378488

1 47378488

  • 47378488 - OUTLET

2 85811921

  • 85811921 - PLUG

3 85811952

  • 85811952 - KIT

4 47488893

  • 47488893 - SOLENOID
  • 14V

5 85811954

  • 85811954 - KIT

6 85824281

  • 85824281 - SEAL KIT
  • Control Valve Section
  • Complete
