(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

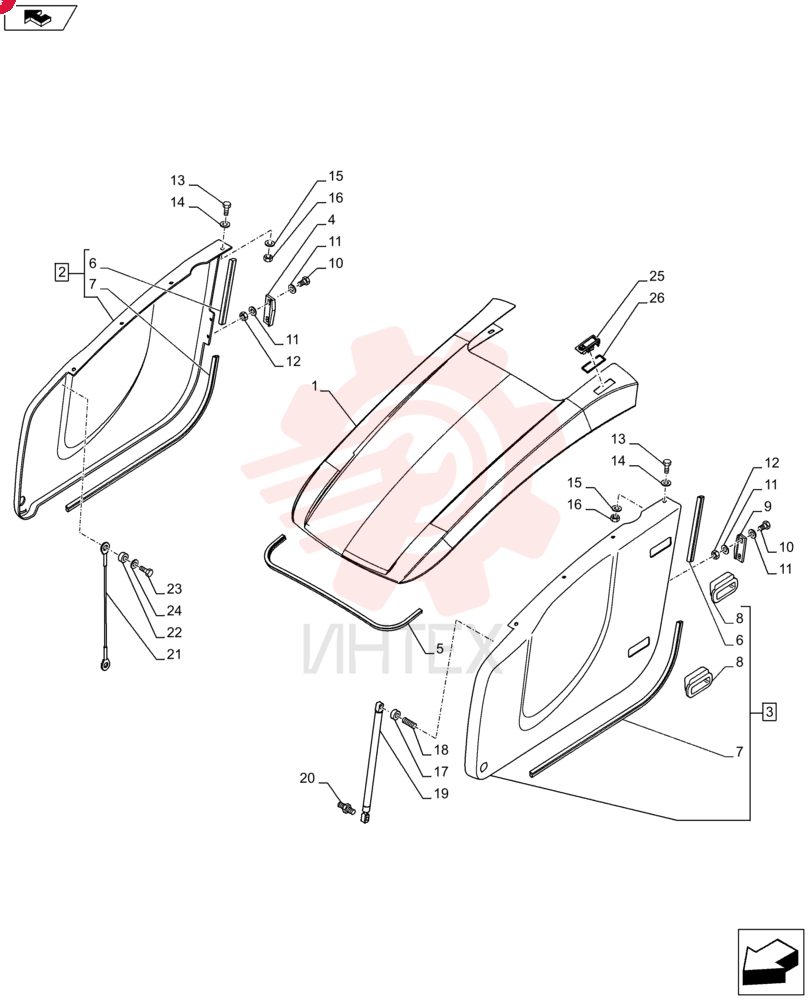

HOOD 47630167

HOOD 47630167

HOOD 47630167

1 47630167

  • 47630167 - HOOD

2 84515139

  • 84515139 - PANEL

3 84515137

  • 84515137 - PANEL

4 D143715

  • D143715 - SUPPORT

5 84587987

  • 84587987 - RUBBER SEAL
  • 870mm L

6 47390241

  • 47390241 - RUBBER SEAL
  • 262mm L

7 47390240

  • 47390240 - RUBBER SEAL
  • 920mm L

8 83962571

  • 83962571 - HANDLE

9 D143714

  • D143714 - SUPPORT

10 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

11 12625201

  • 12625201 - WASHER
  • 8.15mm ID x 20mm OD x 1mm Thk

12 16100811

  • 16100811 - NUT
  • Hex
  • M8
  • 6.80mm
  • Cl 8
  • ZND

13 11106221

  • 11106221 - SCREW
  • Hex
  • M10 x 25mm
  • Cl 8.8
  • Full Thd

14 13578601

  • 13578601 - WASHER
  • 10.2mm ID x 30mm OD x 2mm Thk

15 13550401

  • 13550401 - WASHER
  • 10.5mm ID x 21mm OD x 2mm Thk

16 12577211

  • 12577211 - LOCK NUT
  • M10 x 1.5mm Pitch
  • 12.30mm High
  • Cl 8
  • ZND

17 11190579

  • 11190579 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

18 85828137

  • 85828137 - PIN
  • M10 x 14mm L

19 85828037

  • 85828037 - SHOCK ABSORBER

20 85828149

  • 85828149 - PIN
  • M10 x 20mm L

21 87311366

  • 87311366 - CABLE
  • 533mm L

22 47048715

  • 47048715 - SPACER
  • 10.31mm ID x 15.88mm OD x 6.4mm L

23 11106021

  • 11106021 - BOLT
  • Hex
  • M10 x 1.5 x 20 mm
  • Cl 8.8
  • Full Thd

24 13550401

  • 13550401 - WASHER
  • 10.5mm ID x 21mm OD x 2mm Thk

25 47632454

  • 47632454 - LATCH

26 47632378

  • 47632378 - SEAL
  • 93mm L x 32mm W x 3mm Thk
