New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

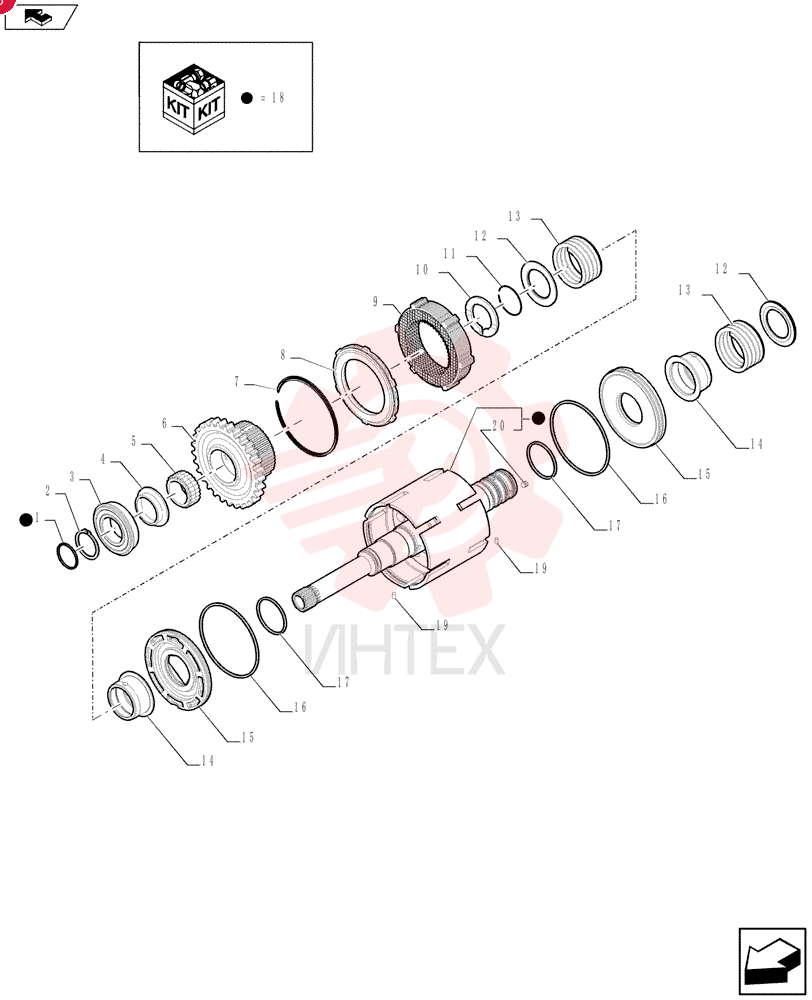

SEALING RING 358645A1 (1)

SEALING RING 358645A1 (1)

SEALING RING 358645A1 (1)

1 358645A1

  • 358645A1 - SEALING RING

2 A48041

  • A48041 - CIRCLIP
  • 41.5mm ID x 2.5mm Thk

3 181128A1

  • 181128A1 - BEARING
  • BALL
  • 45mm ID x 85mm OD x 19mm W

4 358635A1

  • 358635A1 - SPACER

5 358633A1

  • 358633A1 - BEARING
  • NEEDLE
  • 50mm ID x 58mm OD x 25mm W

6 358632A1

  • 358632A1 - PINION
  • 35T

7 181116A1

  • 181116A1 - RING
  • LOCKING
  • 146.6mm ID x 2.5mm Thk

8 310519A1

  • 310519A1 - PLATE

9 87705458

  • 87705458 - CLUTCH OVERHAUL KIT

10 358640A1

  • 358640A1 - WASHER

11 181111A1

  • 181111A1 - RING
  • LOCKING
  • 47.8mm ID x 1.5mm Thk

12 181161A1

  • 181161A1 - PLATE
  • THRUST

13 358637A1

  • 358637A1 - SPRING

14 358641A1

  • 358641A1 - TRANSMISSION SLEEVE

15 358644A1

  • 358644A1 - PISTON

16 358643A1

  • 358643A1 - SEALING RING
  • 126.83mm ID x 137mm OD x 3.25mm Thk

17 358642A1

  • 358642A1 - SEALING RING

18 87525849

  • 87525849 - REPAIR KIT

19 181108A1

  • 181108A1 - SPLIT PIN
  • 3mm OD x 8mm L

20 139312A1

  • 139312A1 - PLUG
  • Expansion
  • 6mm OD
